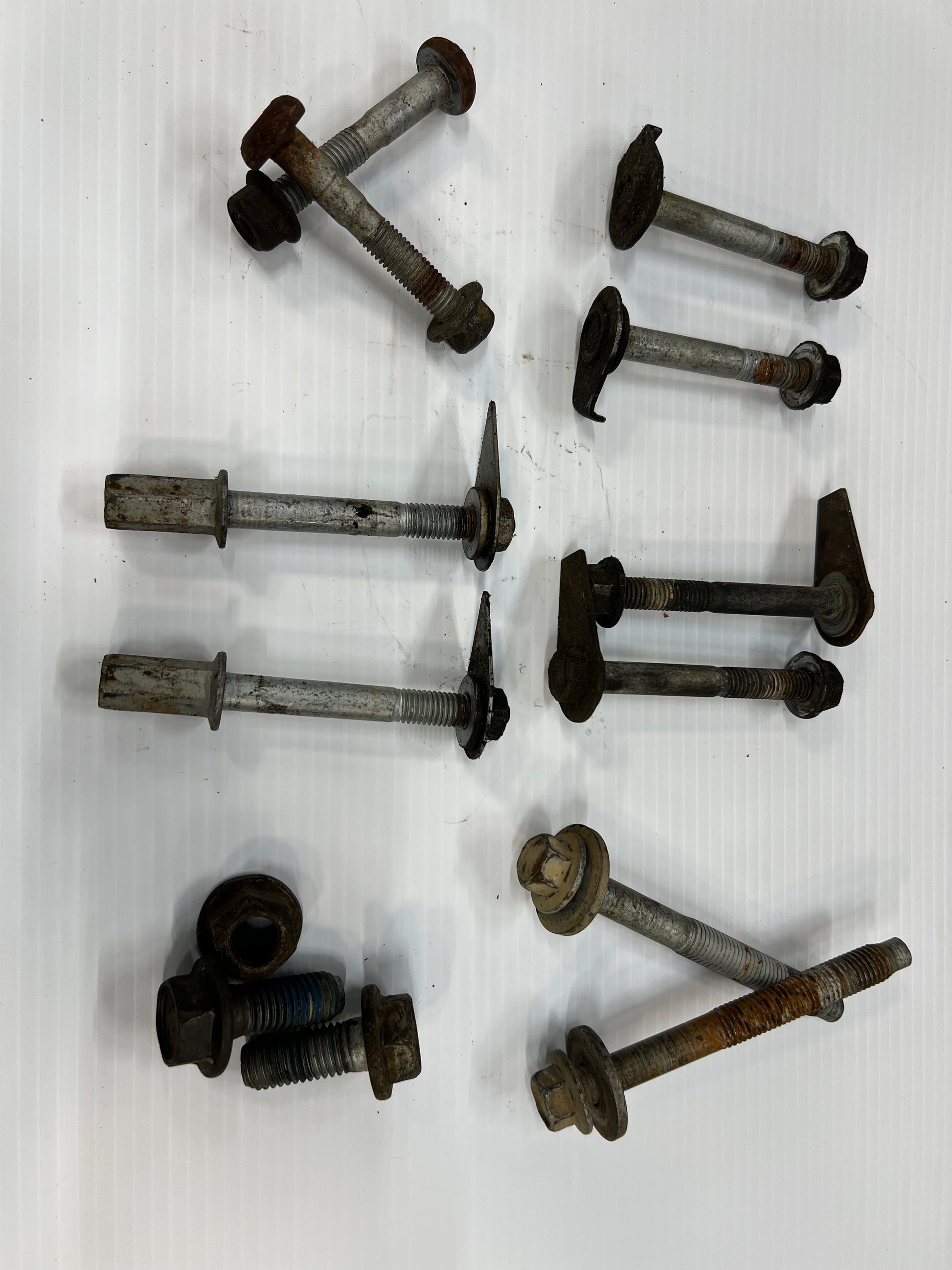

This Listing is for the OEM Front & Rear UPPER Control Arm Bolts For Jeeps 1987-2004. I will have different styles and years they used, But most do interchange via Location they are used in. 1,2,3,4, & 5 Are M10x1.5 Threads

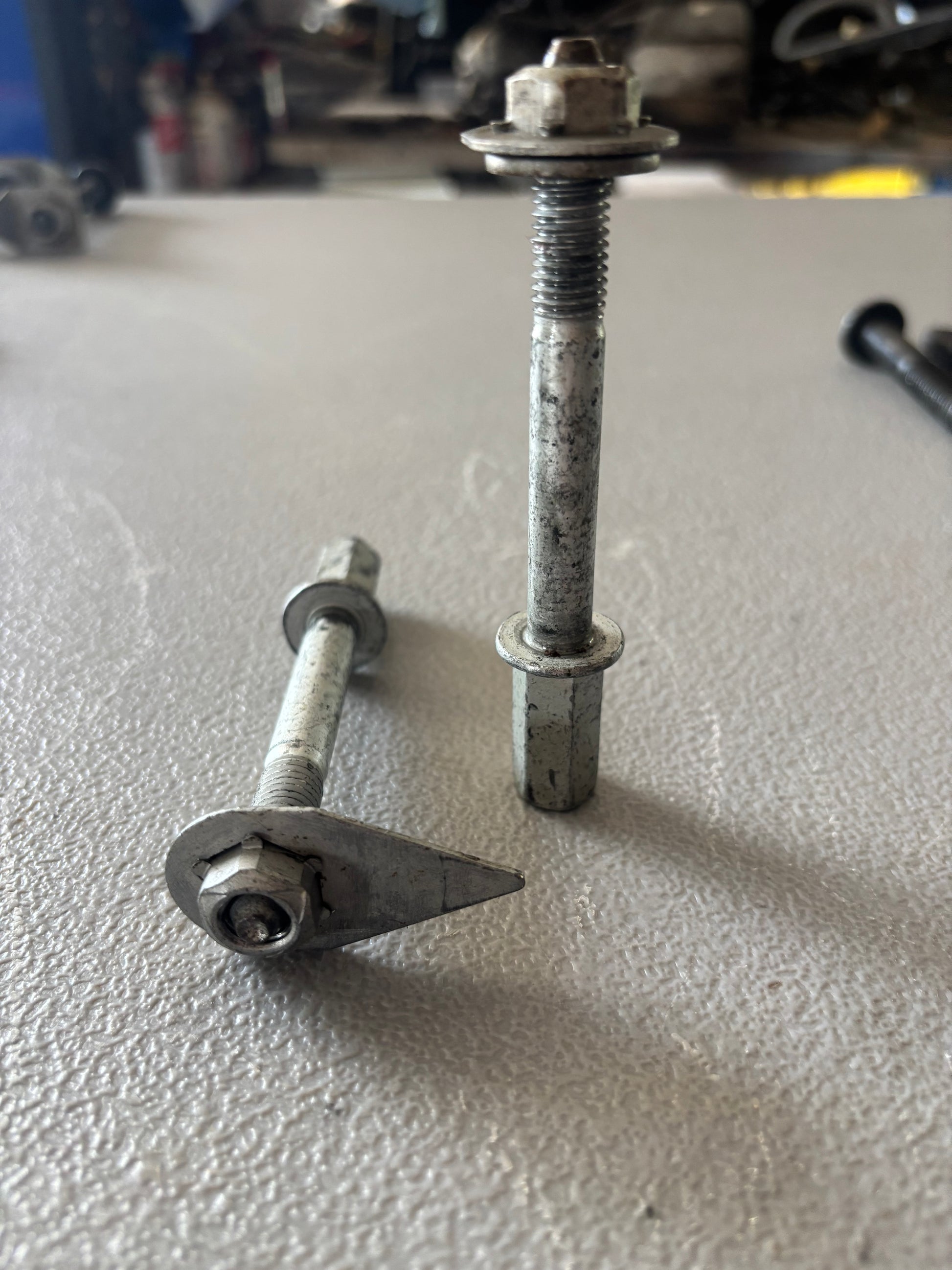

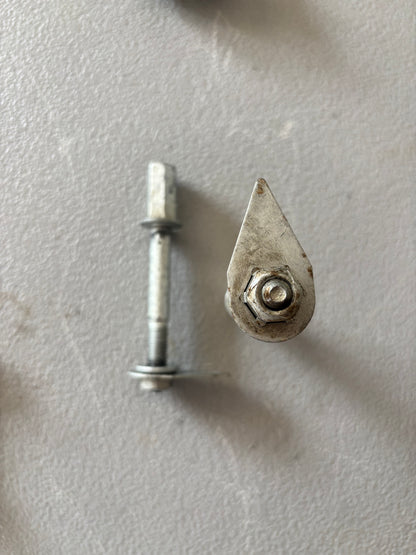

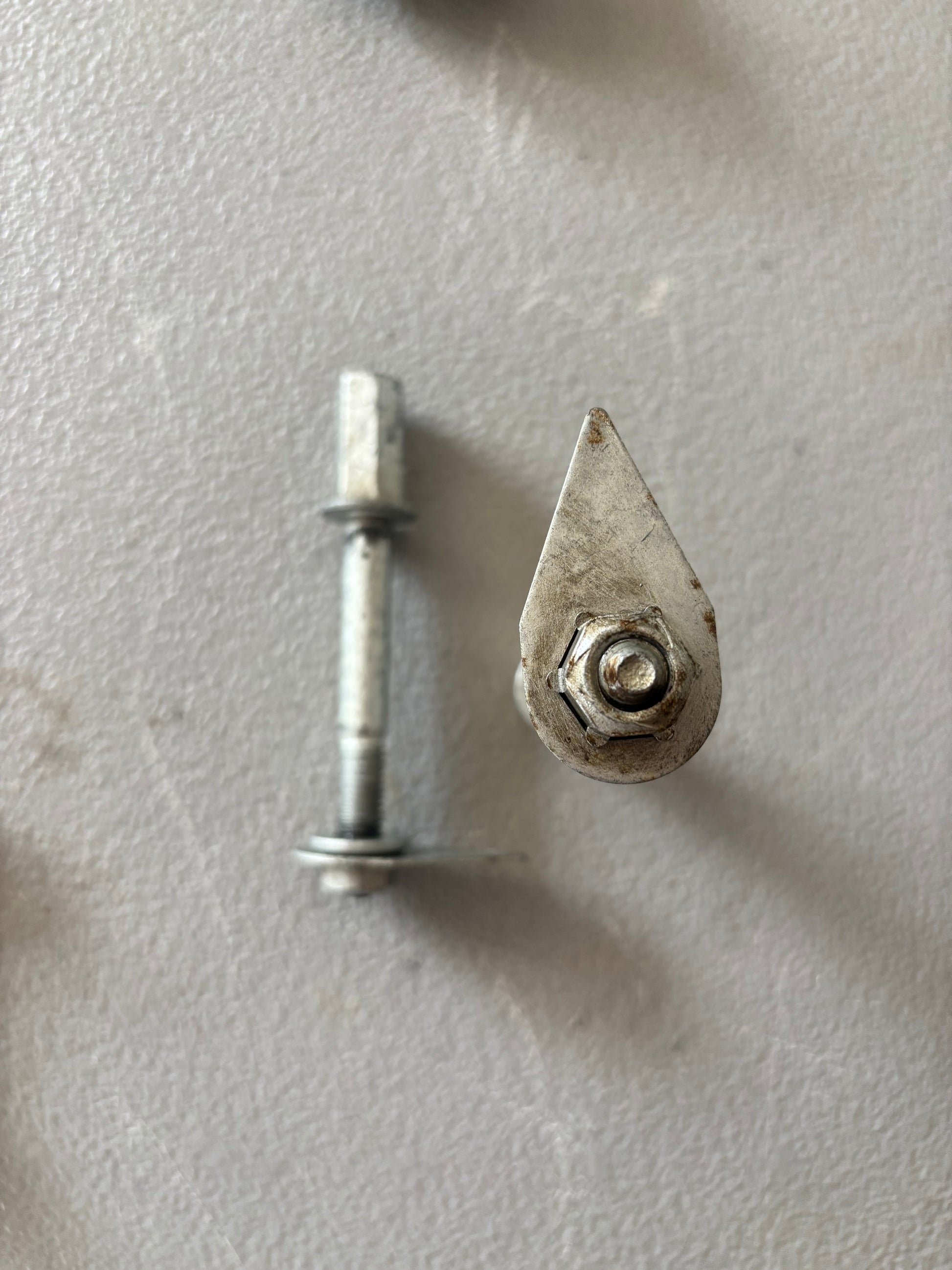

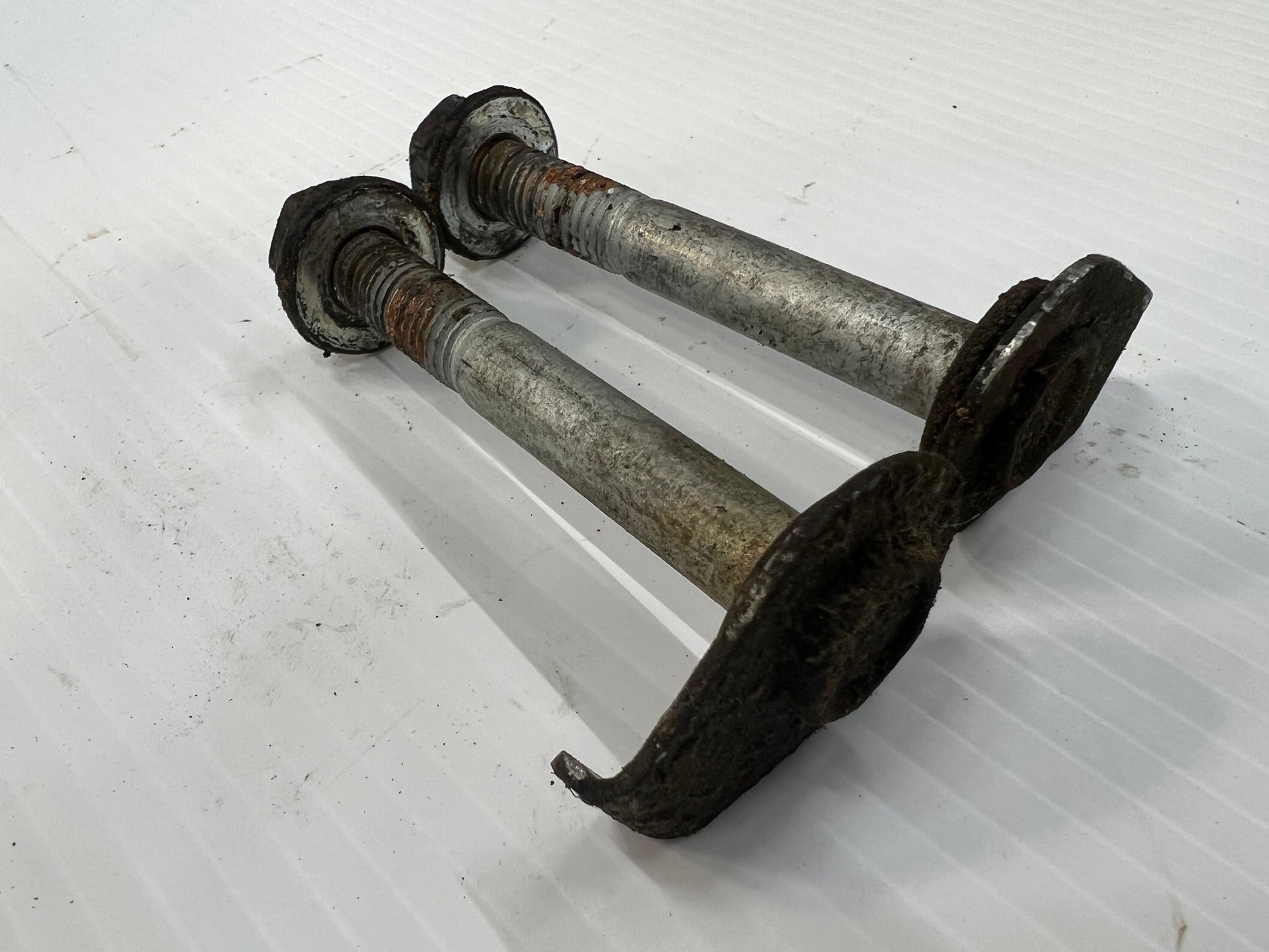

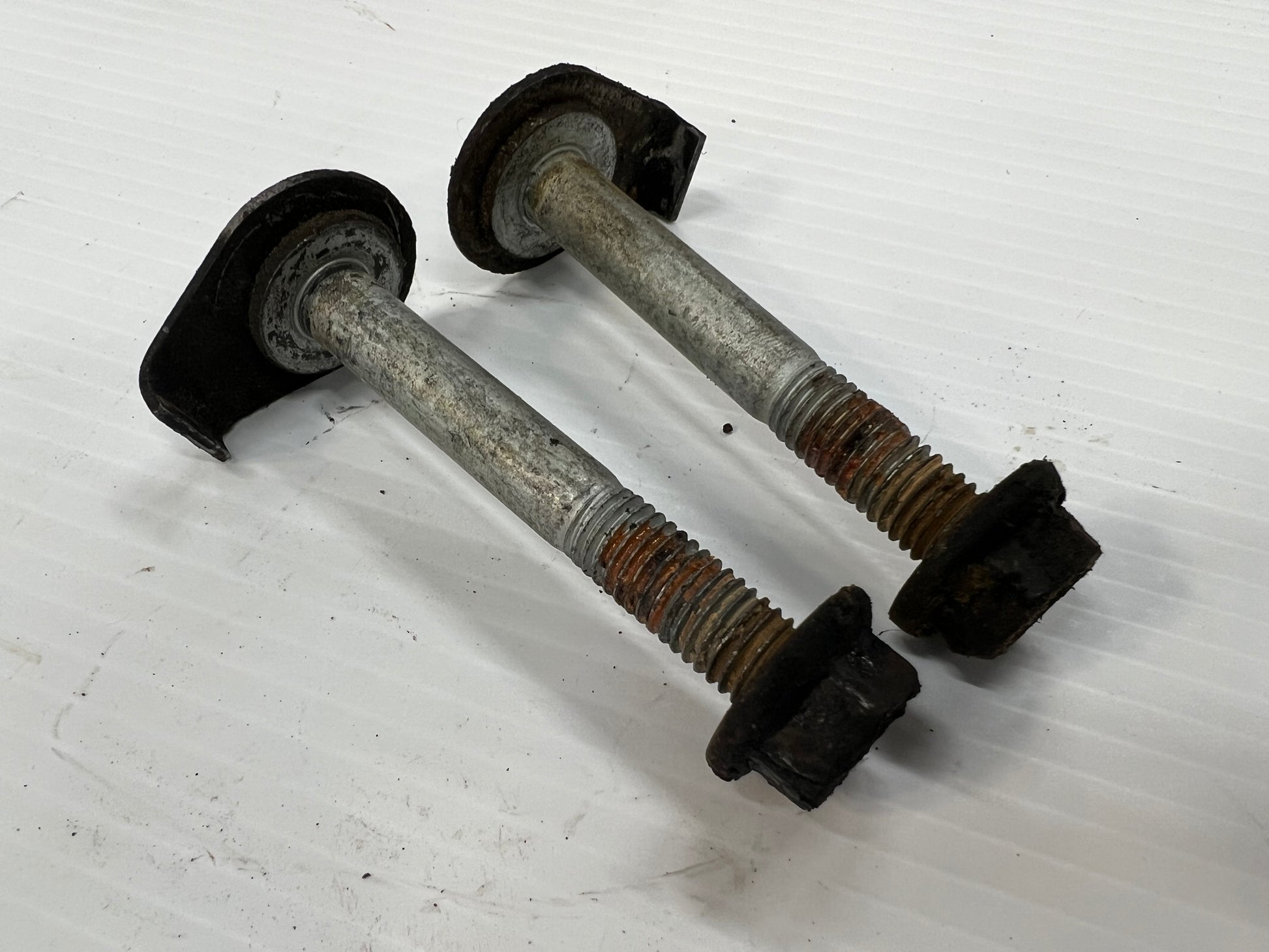

#1 - Bolts used in the Upper Control arms on the Body/Frame side of the arm. 13mm Head size that is extra tall to help install the bolt though the frame and includes the nut with tab to prevent spinning. Comes on 1999-2004 Jeep Grand Cherokees, But Fits ALL Models. Comes in PAIRS Two Bolts These are great upgrades for XJ-ZJ-TJ on the Frame Side OR TJ-ZJ Rear Uppers - Not WJ Rears.

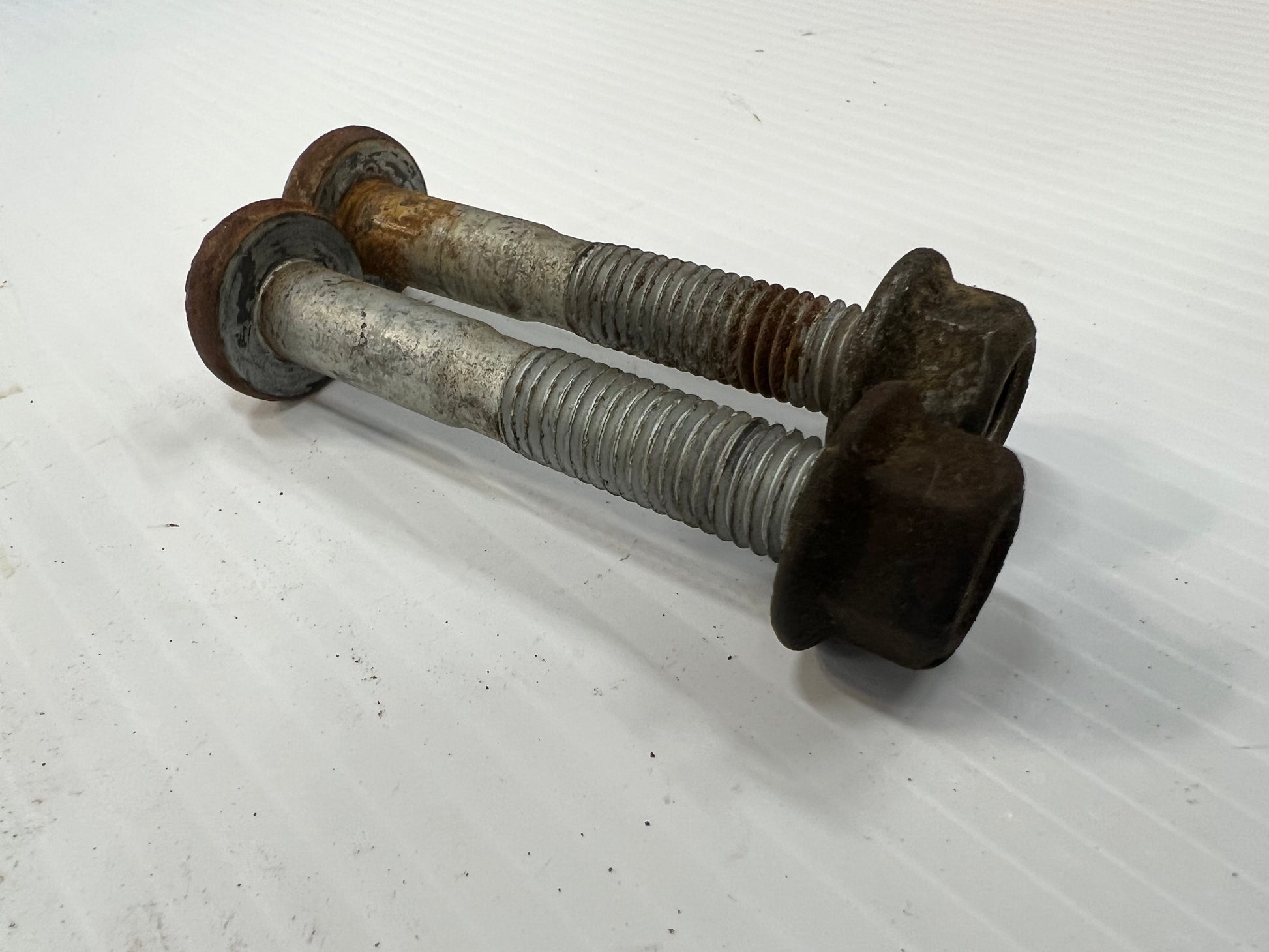

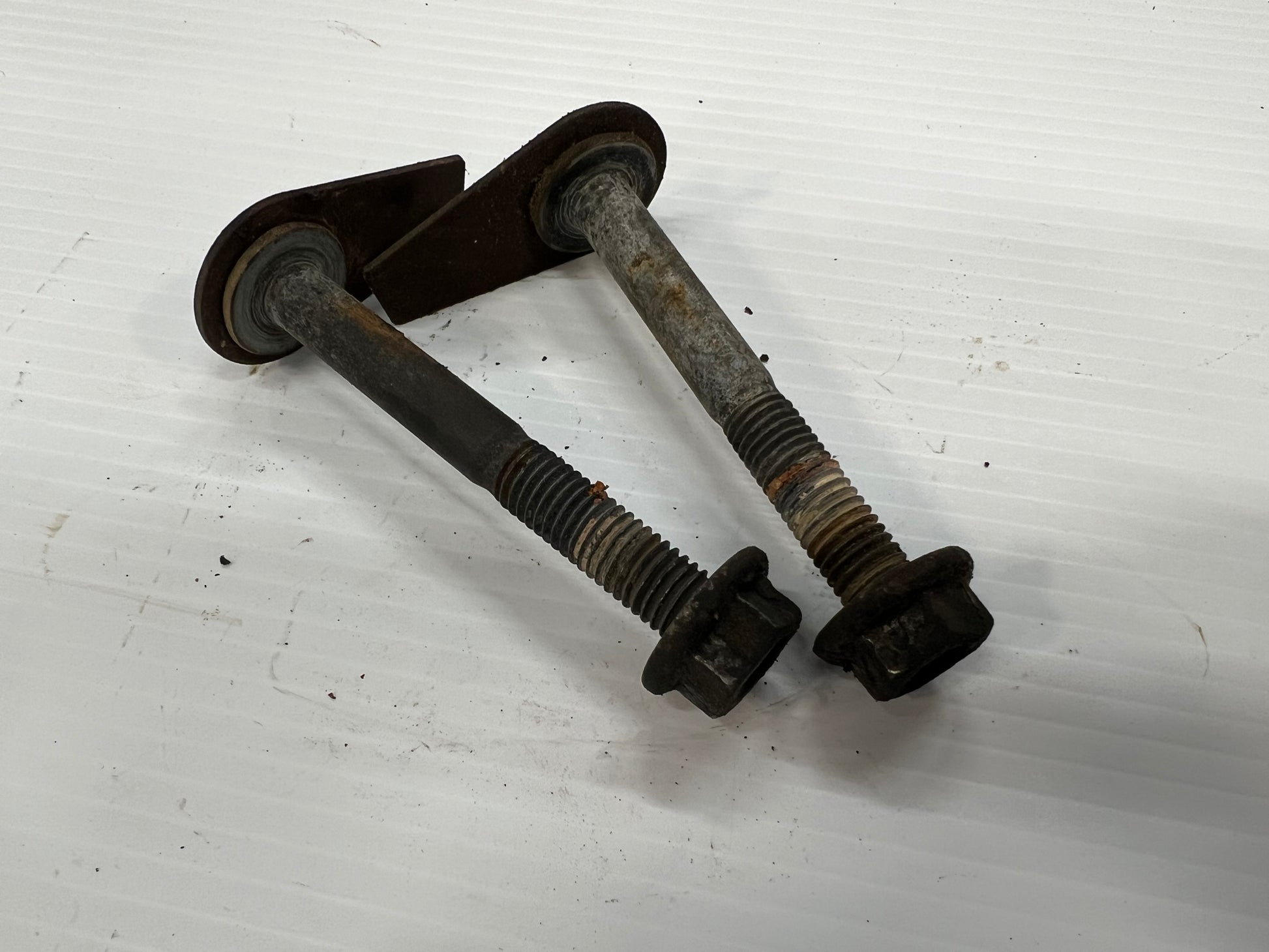

#2 - Factory XJ Upper Control arm mount bolt used on the frame side with and anti spin tab. These have to be installed from outside the frame to the inside with the nut on the inside. I personally would use the bolt above from the WJ so you can tighten with and impact from the outside instead of a wrench when the engine is installed. Bolt and 15mm nut.

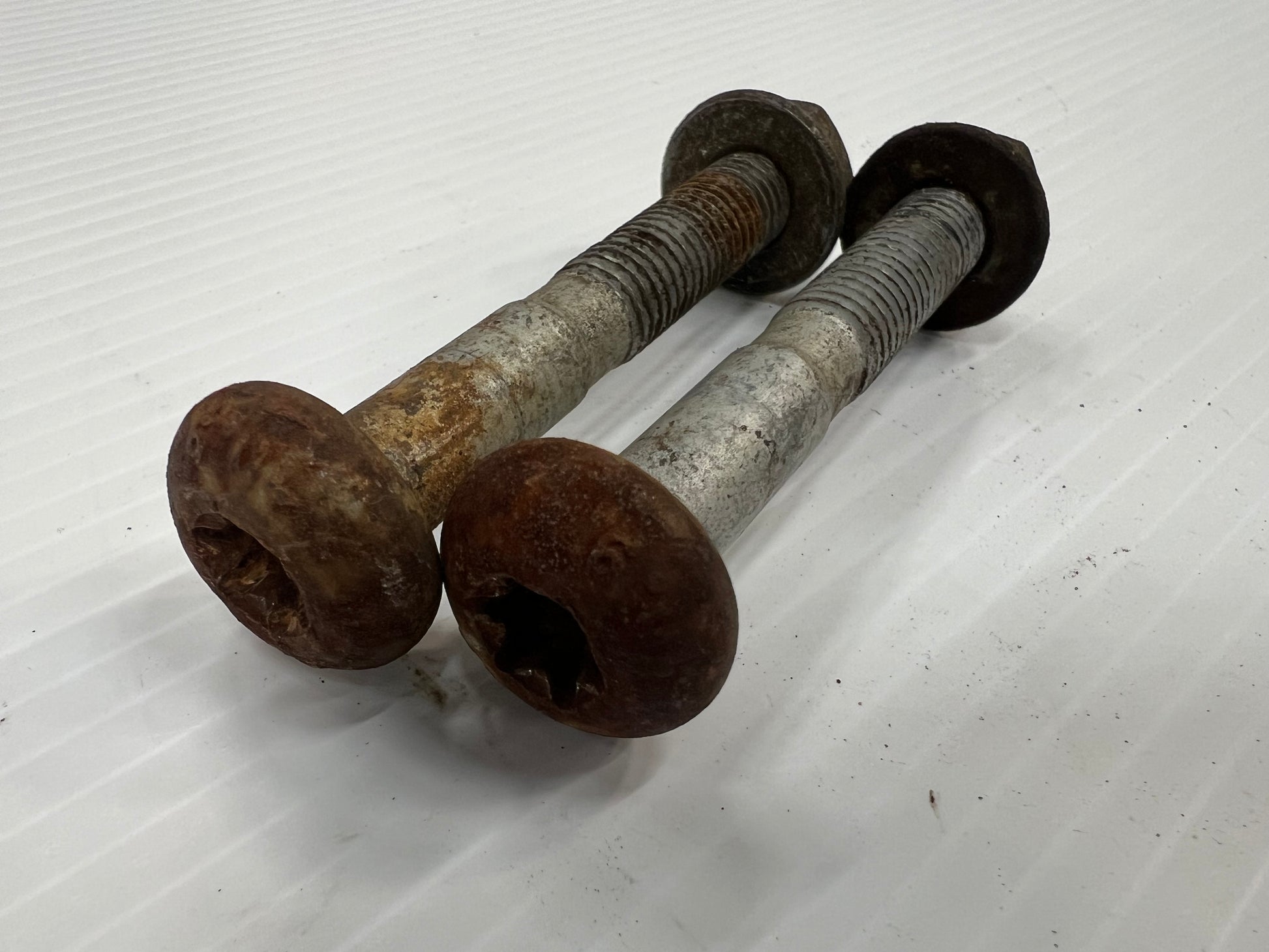

#3 - Factory XJ - ZJ - TJ Front & Rear Upper Control Arm bolt used on the AXLE side for clearance issues on all Jeeps. They use a smooth shaped Torx T-50 Head along with a 15mm nut. Always have the head size facing the driver side & nut facing passenger side on the front axle.

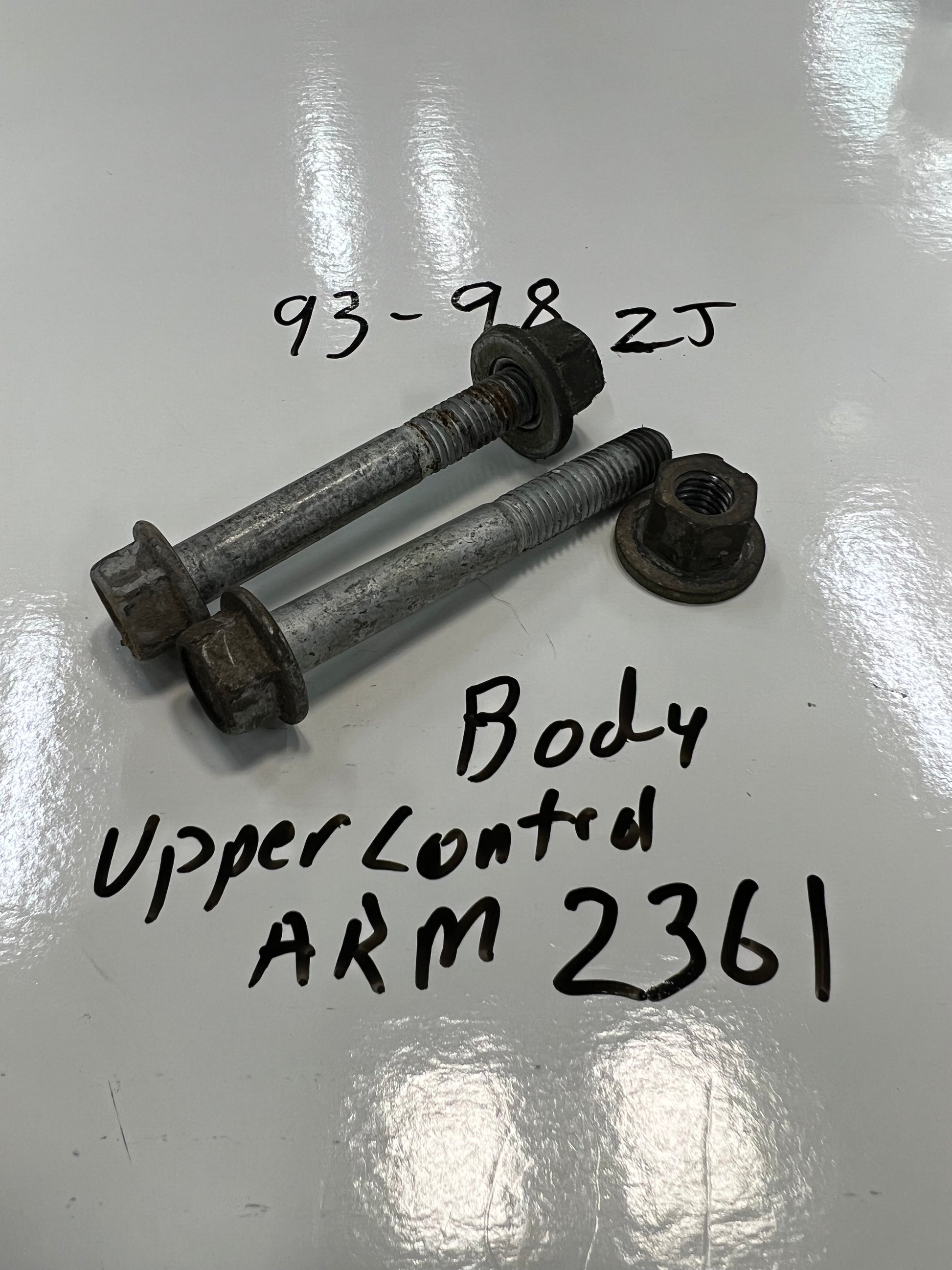

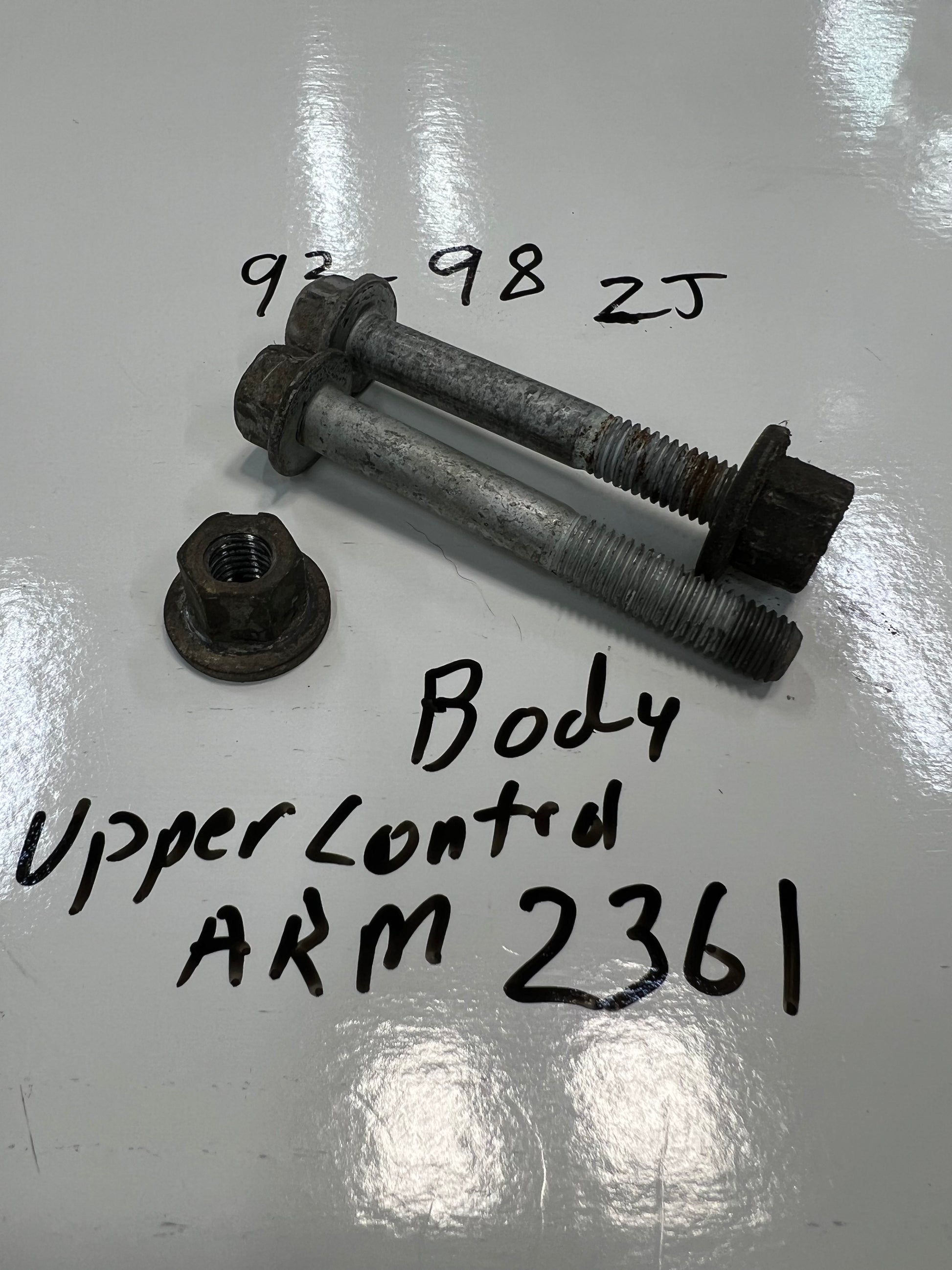

#4 - Upper Control Arm Bolts Used in the 1993-1998 Jeep ZJ on the Body Side. These Have 15mm Head on the Nut & Bolt Side. These could be used in any model Jeep, In my opinion I would still use the #1 Bolts with the raised head for easy installation, On the Body Side. Axle Mount Sides Will Always Need Extra Clearance!

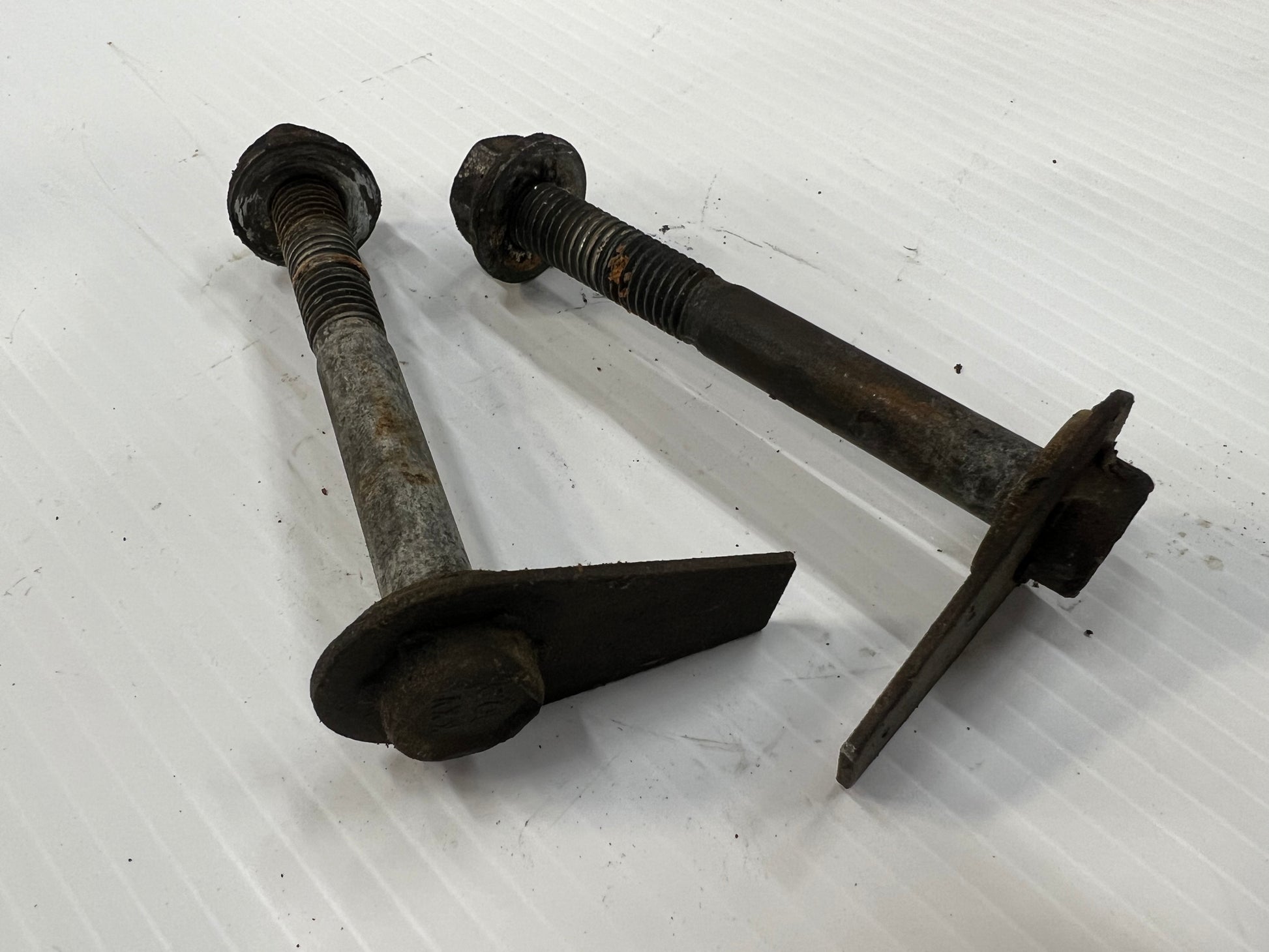

#5 - Upper Control Arm bolt used in earlier Models of Jeep. This bolt is used on the axles mounts and has a shaved head bolt with an anti spin tab that will attempt to kill you if you aren't careful with is. Comes with 15mm Nuts. This was Jeeps first attempt to fix engine clearance issues. Always have the head size facing the driver side & nut facing passenger side

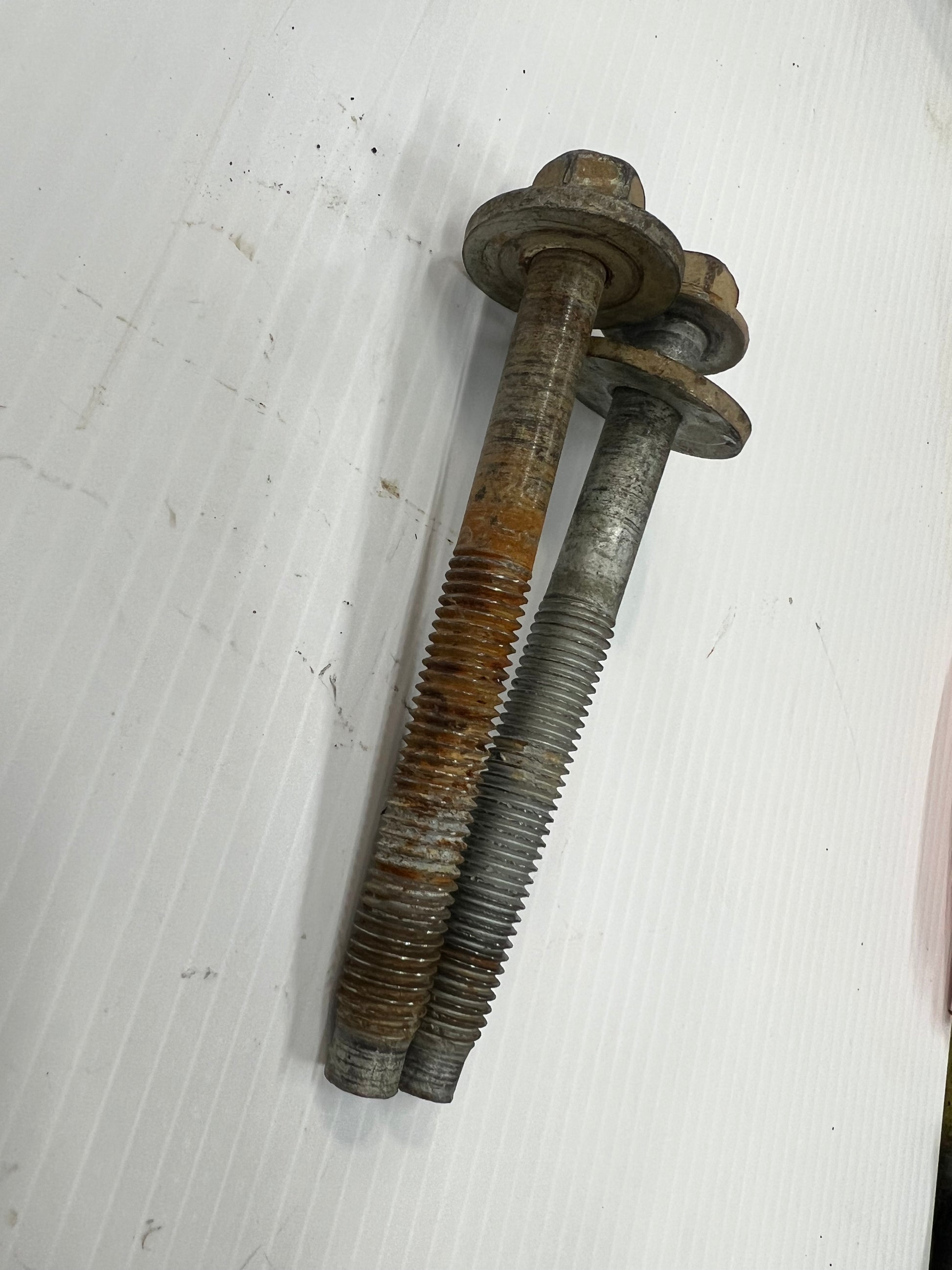

#6 - 1999-2004 Jeep Grand Cherokee Rear Upper Wishbone Style link bolts. These go on the body/chassis side to attach the wishbone to the chassis. Two Bolts. 15mm Head
#7 - 1999-2004 Rear axle ball joint mount. It will have the three 21mm Bolts to attach the Ball Joint Mount to the rear axle housing along with one 21mm Nut that attaches the Ball Joint the the Wishbone link. Three Bolts - One Nut.
