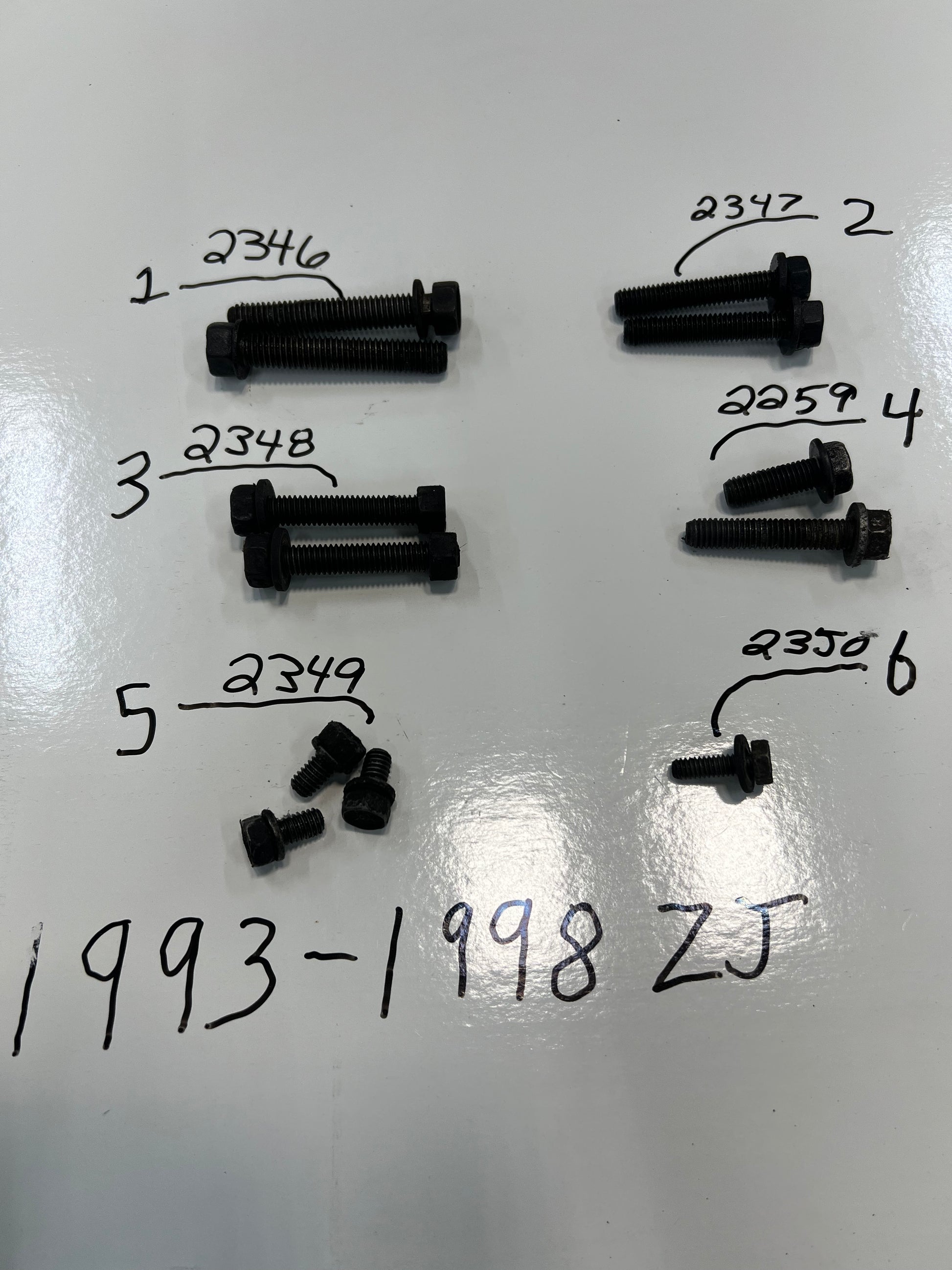

This is ALL of the Bolts For the Engine to Transmission Bolts for a 1993-1998 Jeep Grand Cherokee 4.0 (NOT THE AW4)

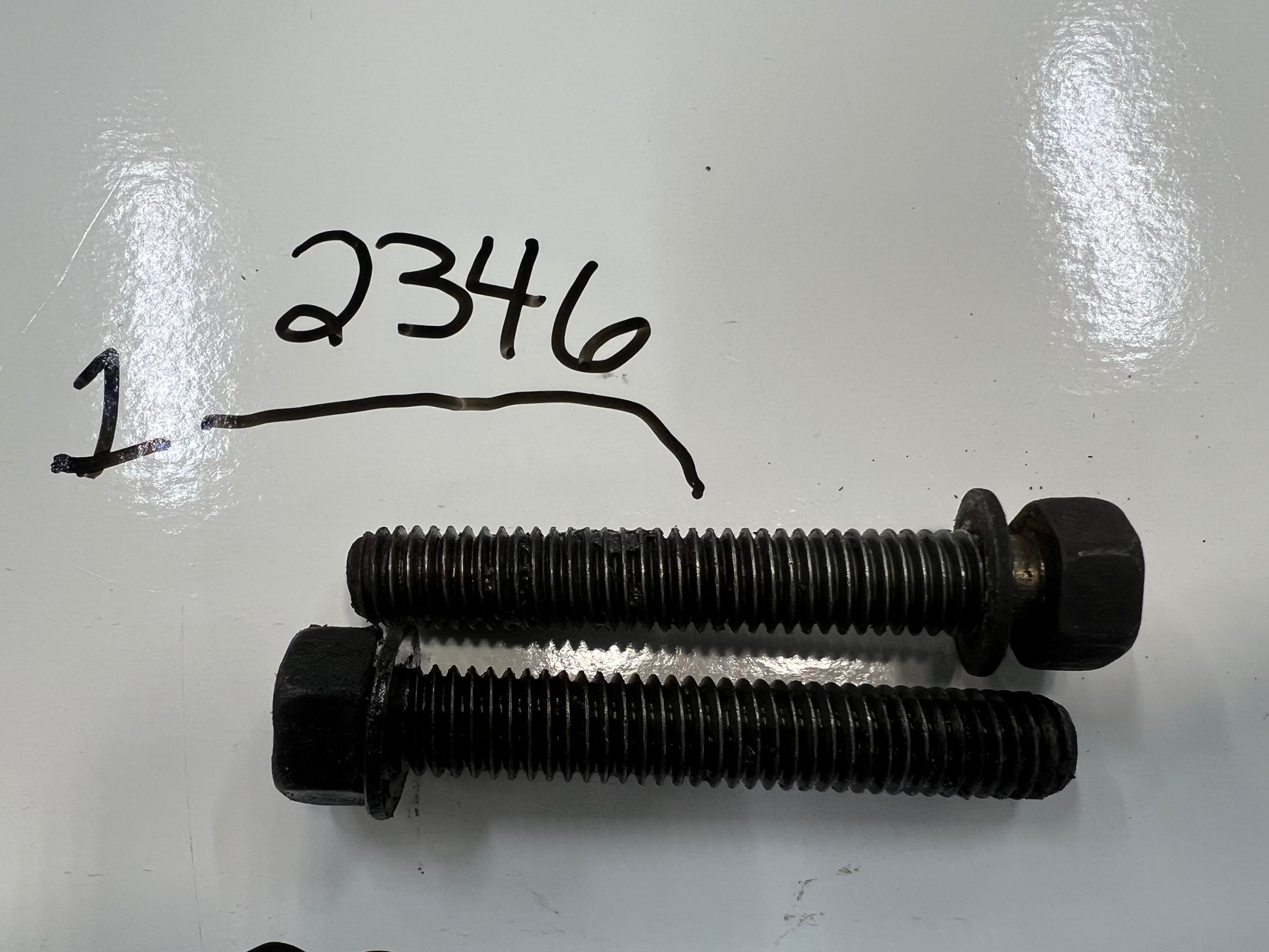

#1 - The Main Two Side Bolts for the Bellhousing-Engine 5/8 Head - 7/16-14 Thread - 2 1/2 Inches Long

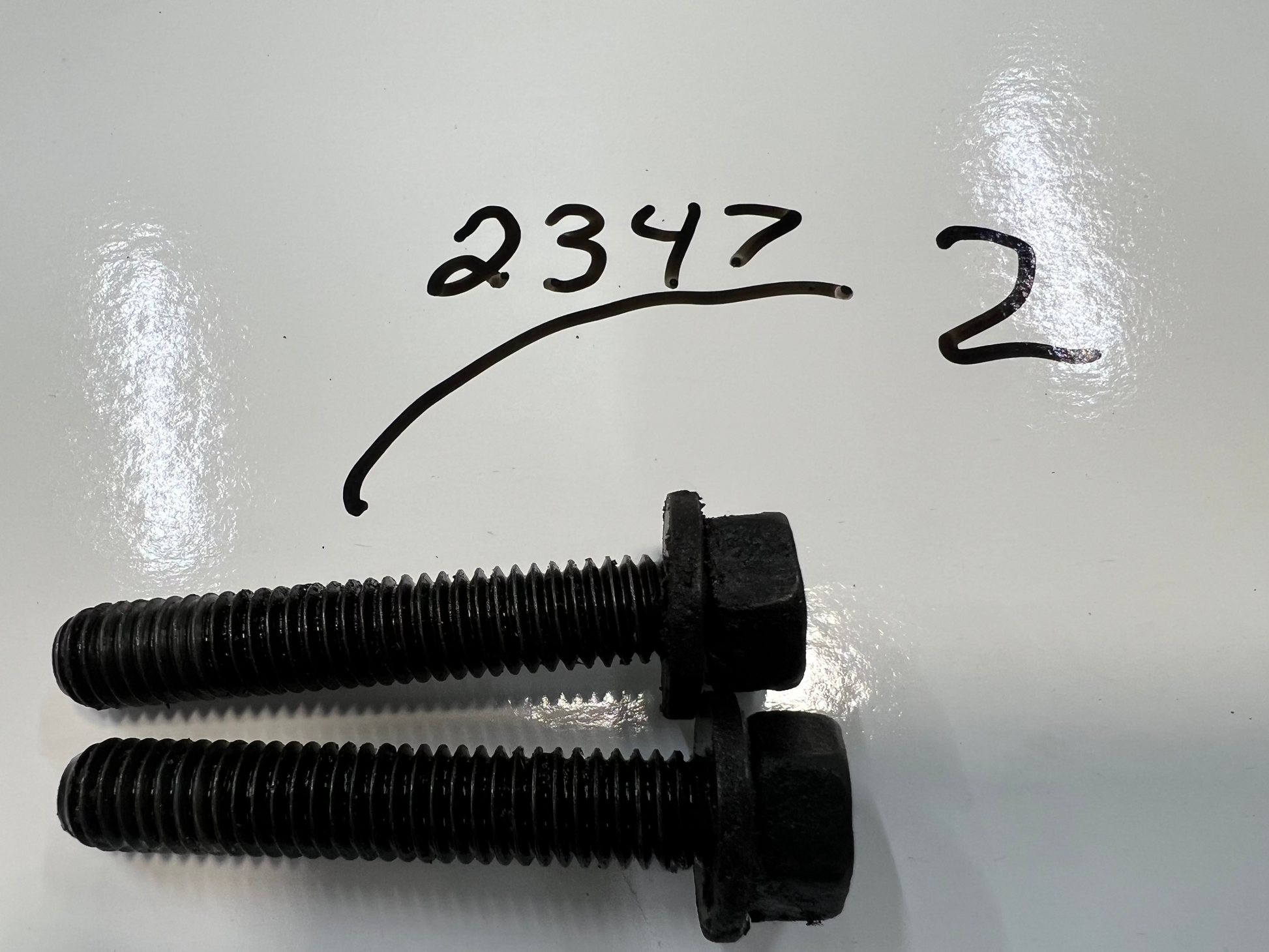

#2 - The Two Top Bolts for the Bellhousing-Engine 9/16 Head - 3/8-16 Thread - 2 inches Long

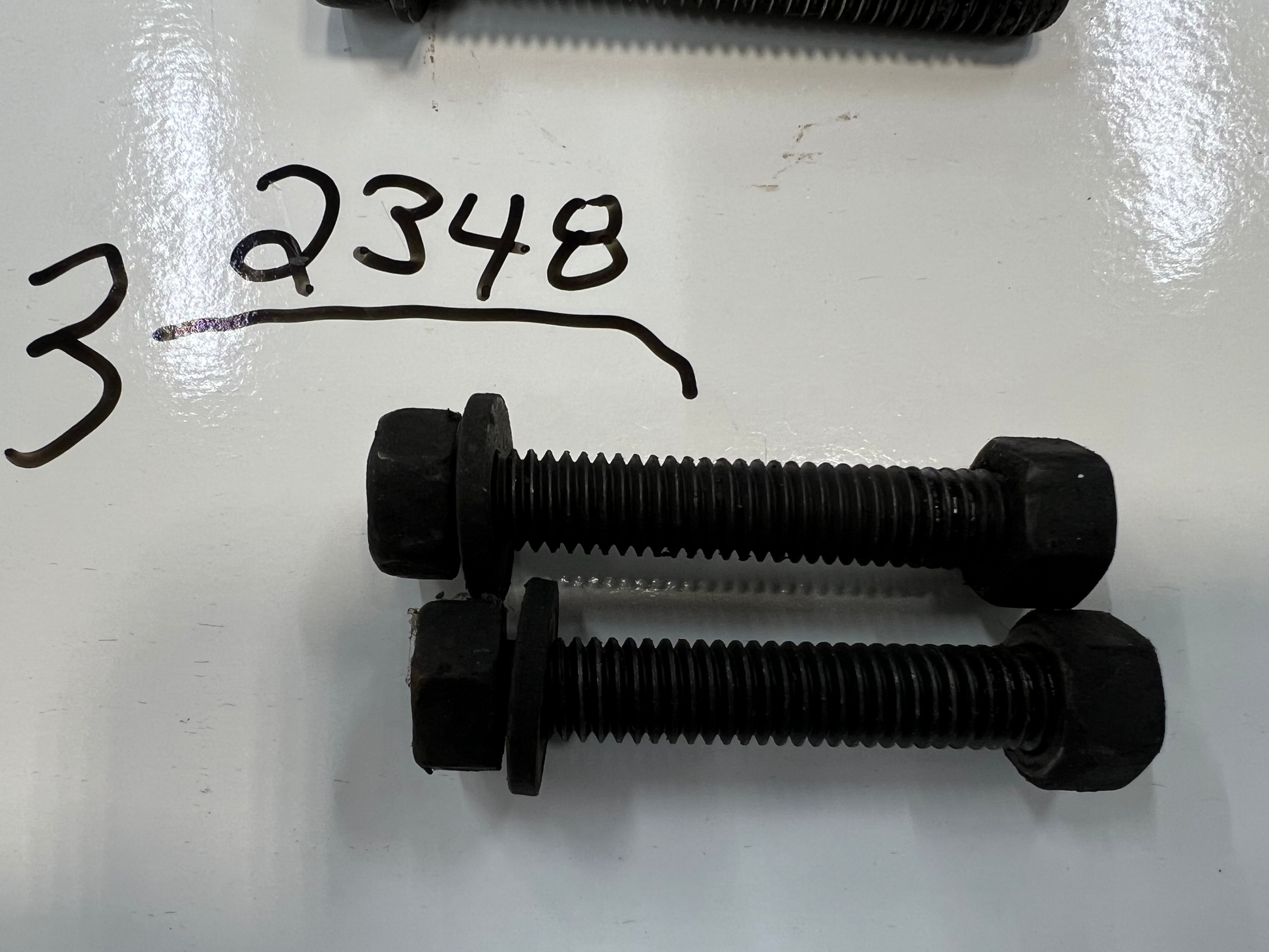

#3 - These are the Side Bellhousing-Dust Cover Bolts & Nuts. One side Usually holds a Dipstick Tube. 9/16 Head - 3/8-16 Threads 2 Inches Longs WITH Two 9/16 Nuts.

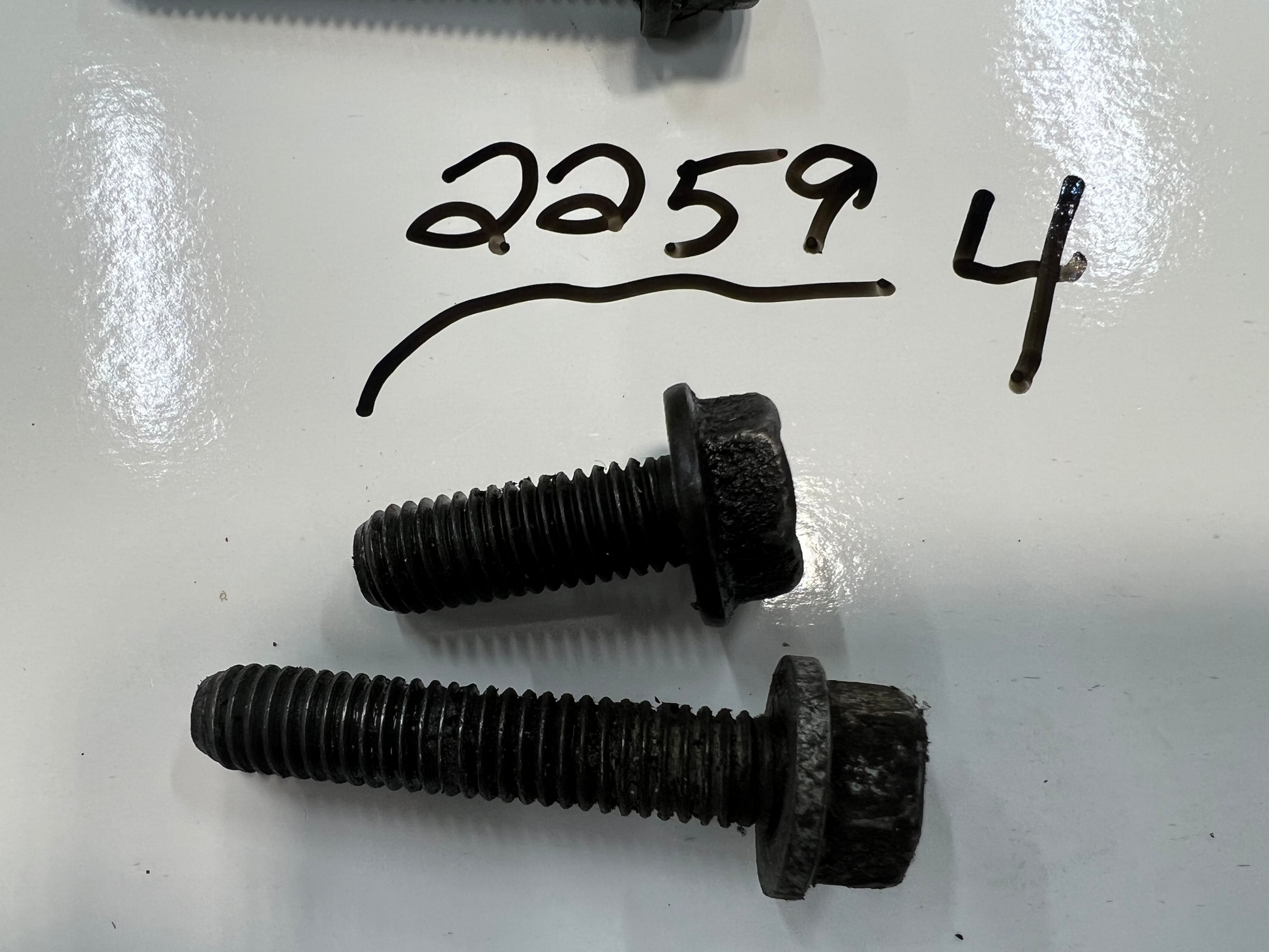

#4 - These are the Two Starter-Bellhousing Bolts. One is a 9/16 Head - 3/8-16 Thread 1 3/4 Long - One is 15mm Head M-10 1.5 Thread 27mm Long

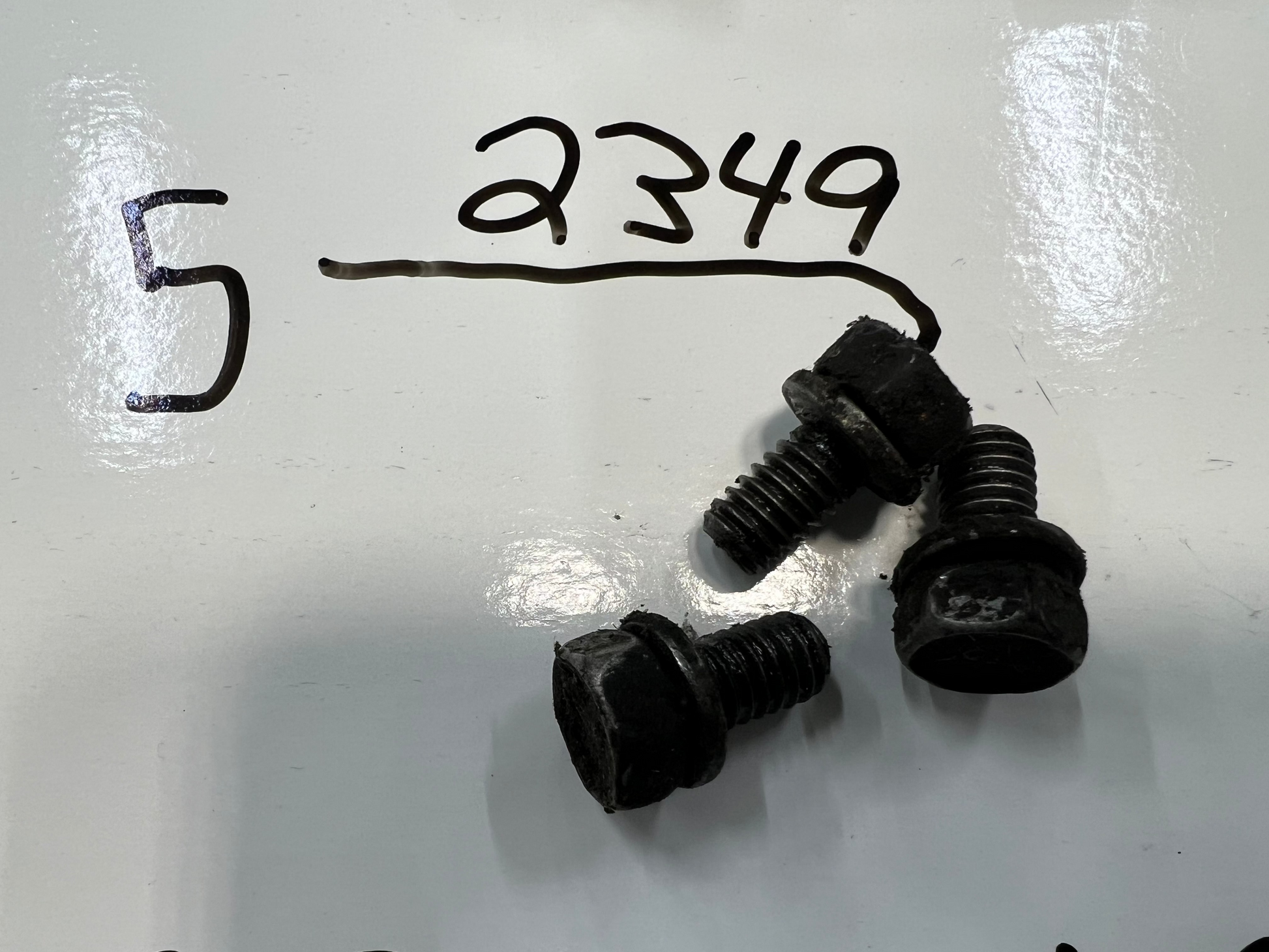

#5 - These are the Three Lower Dust Cover Bolts . 1/2 Head 5/16-18 Thread 1/2 Inch Long

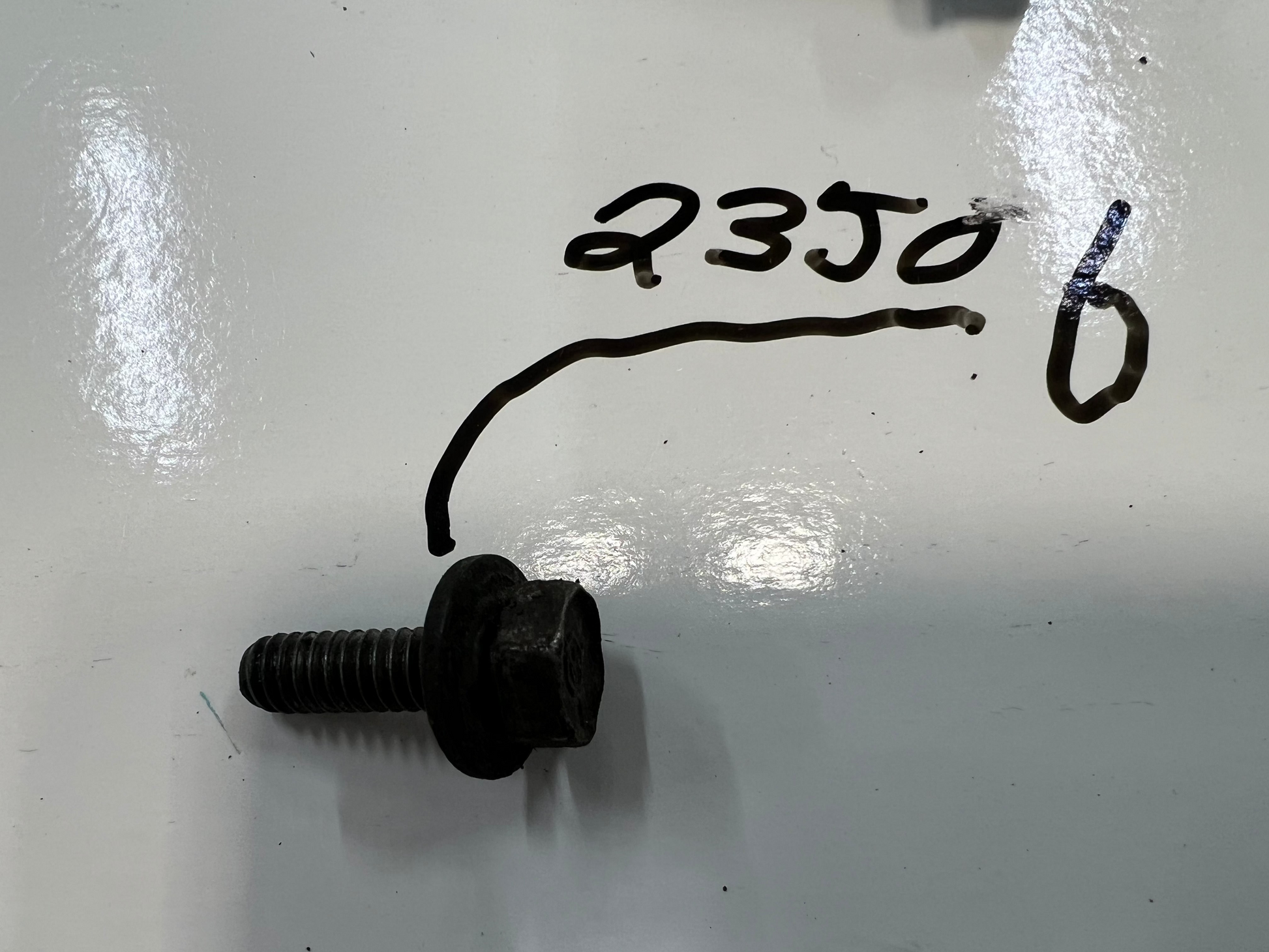

#6 Is the Crank Sensor Bolt- Bolt to Bellhousing. 7/16 Head 1/4 20 Thread 3/4 Long
