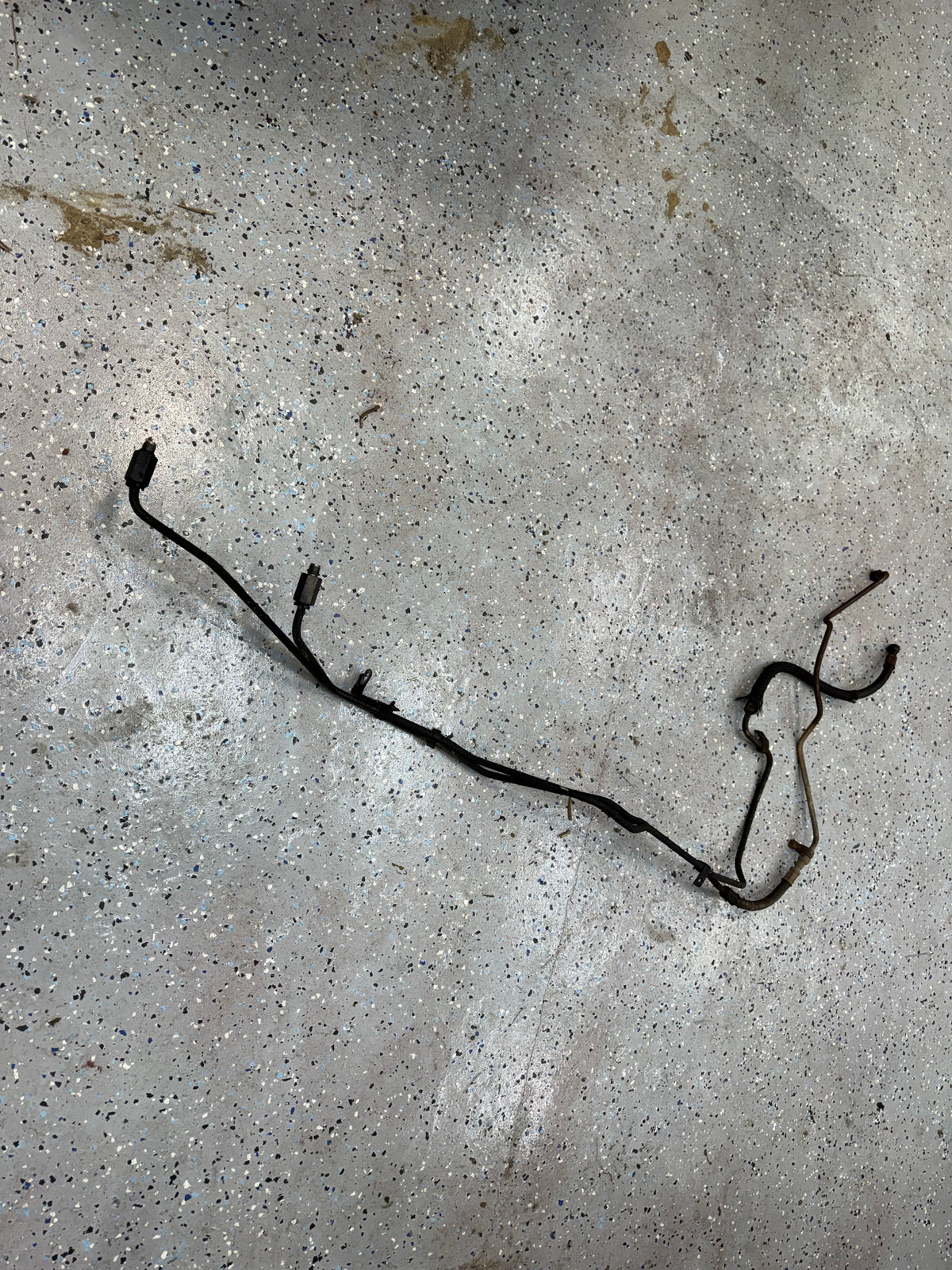

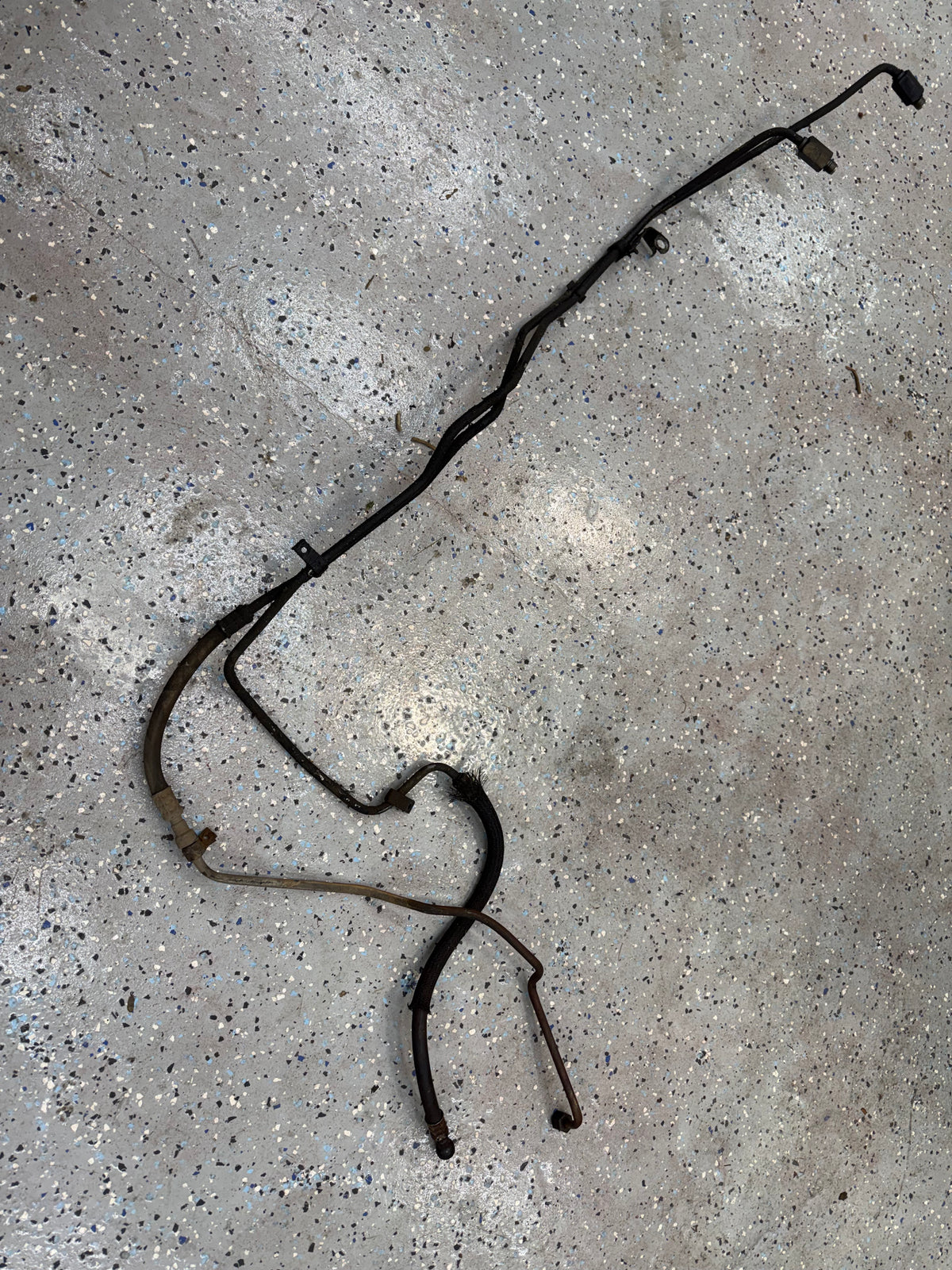

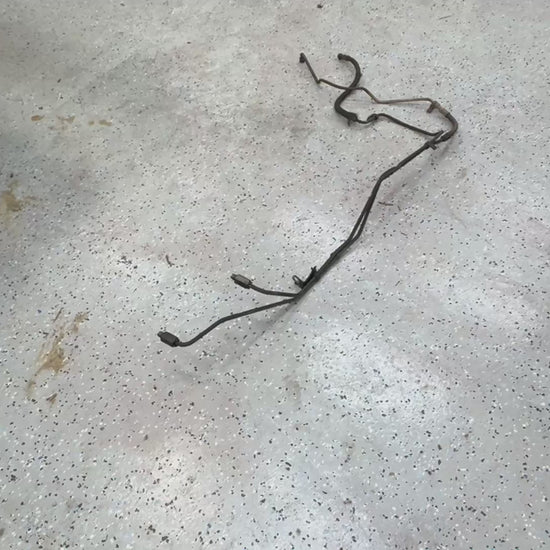

Transmission to Radiator Cooler Lines - Jeep Cherokee XJ - AW4 - 87-01

 - This is the OEM Cooler Lines for the AW4 automatic transmission on a Jeep Cherokee with 4.0 engine. These Screw into the Passenger Side of the AW4 Automatic Transmission & Run Up to the Radiator Of the XJ.

Fits -1987-2001 Jeep XJ's 4.0 - 2WD & 4WD

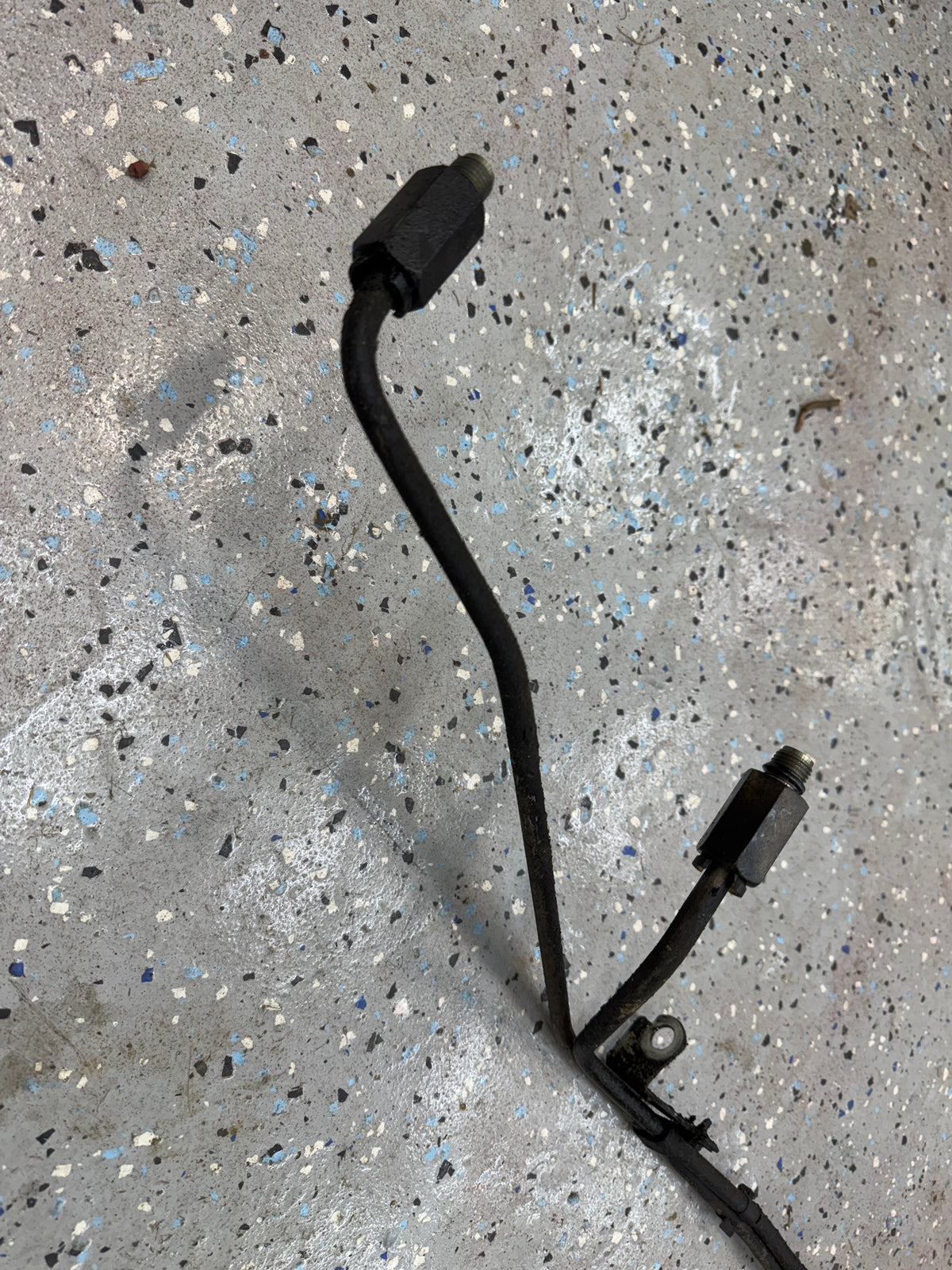

 - They do have a "Quick Connect" at the Transmission end - I do not recommend un clipping at this. They fall apart and get trash in them & of course the new replacement parts are lower quality. These are easy to unscrew

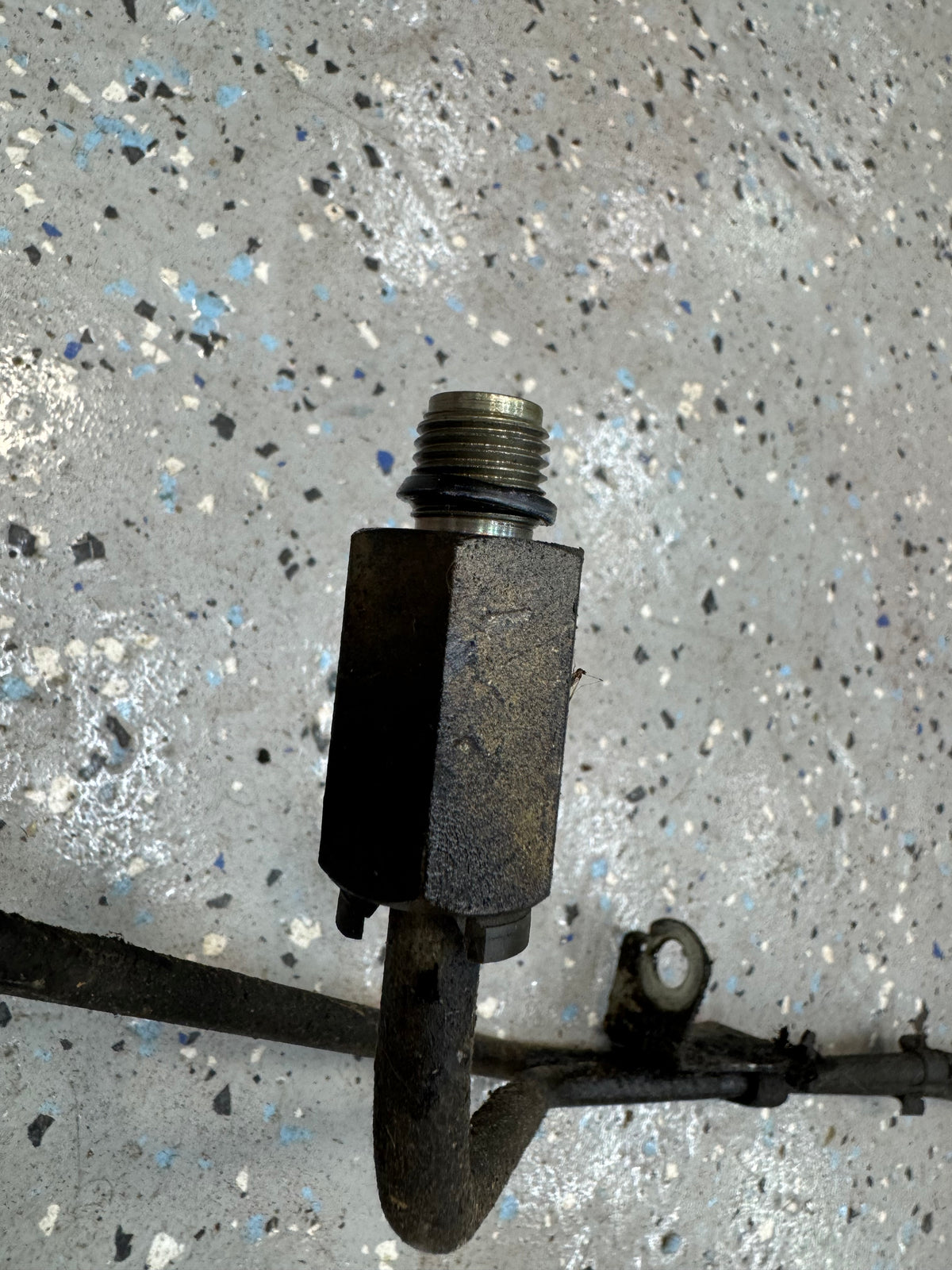

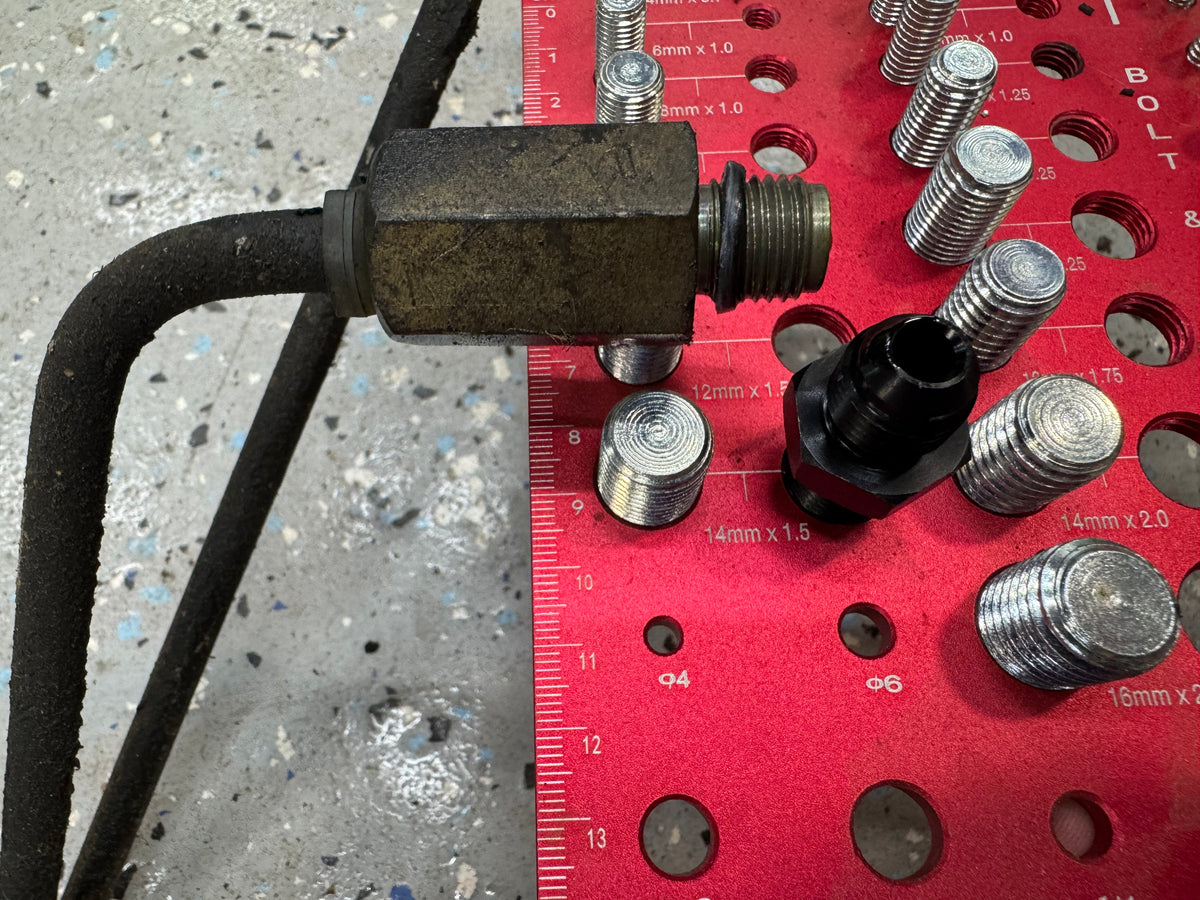

- 7/8 Wrench Size - M14 x 1.5 O-Ring Threads

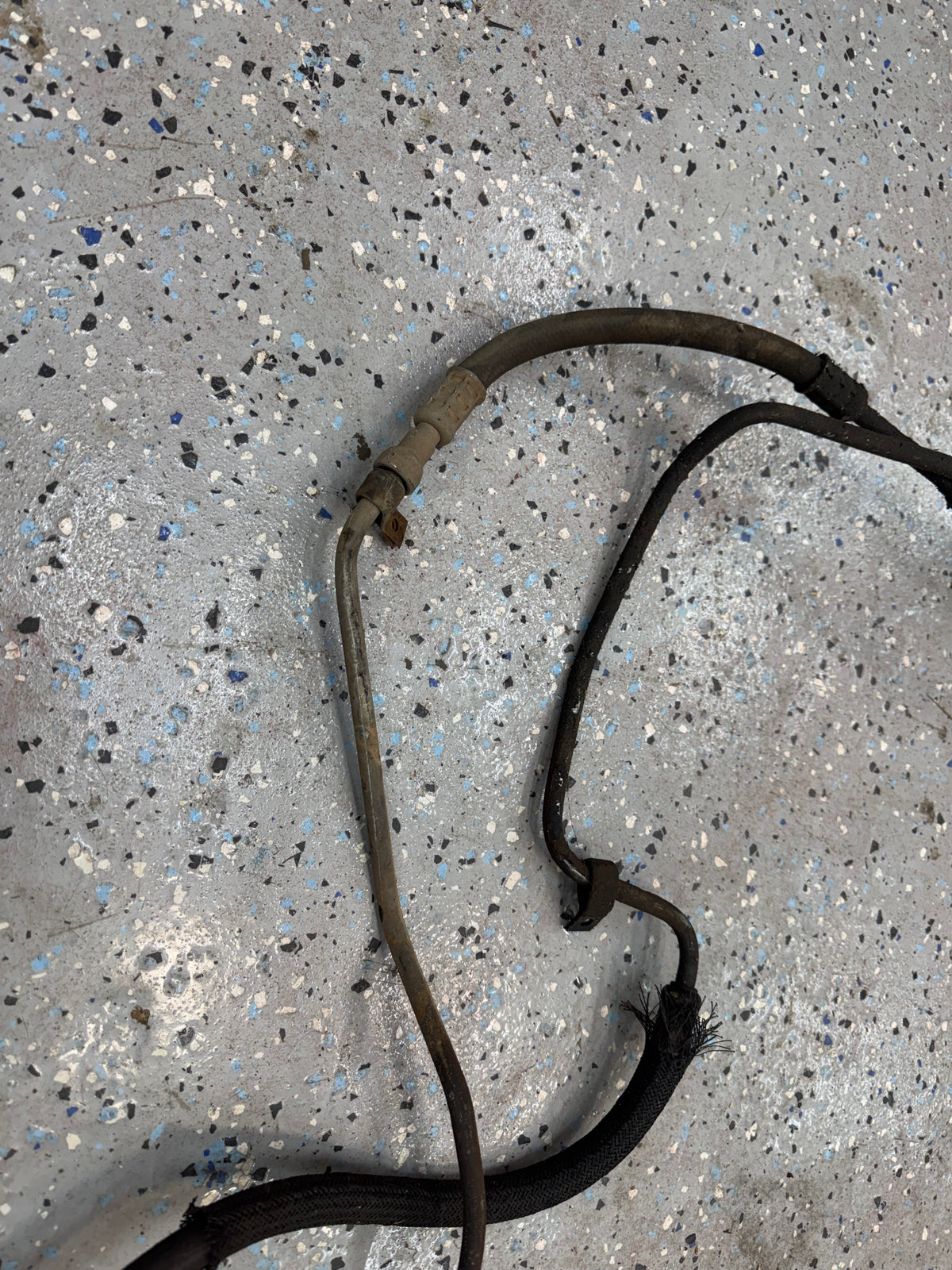

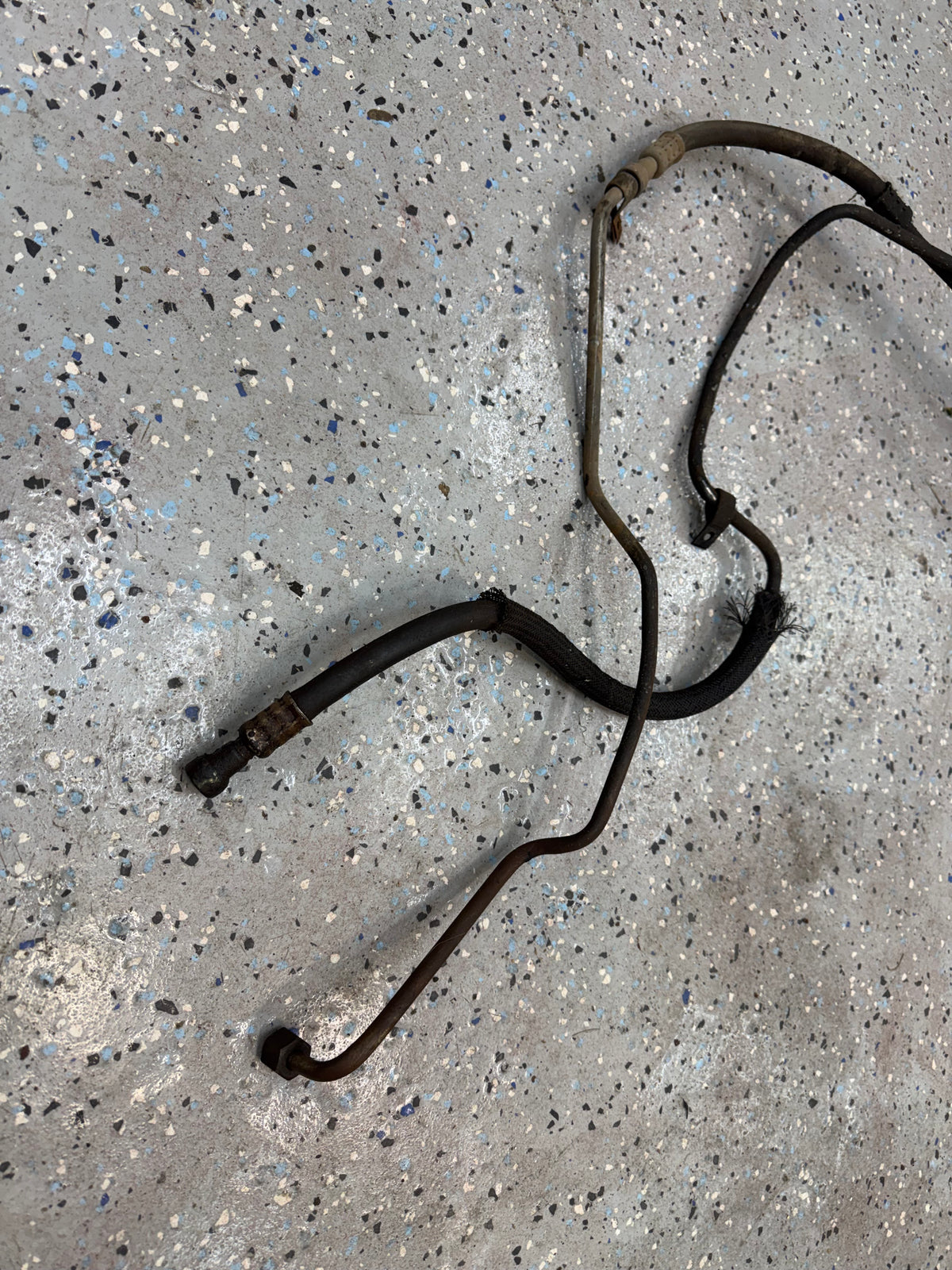

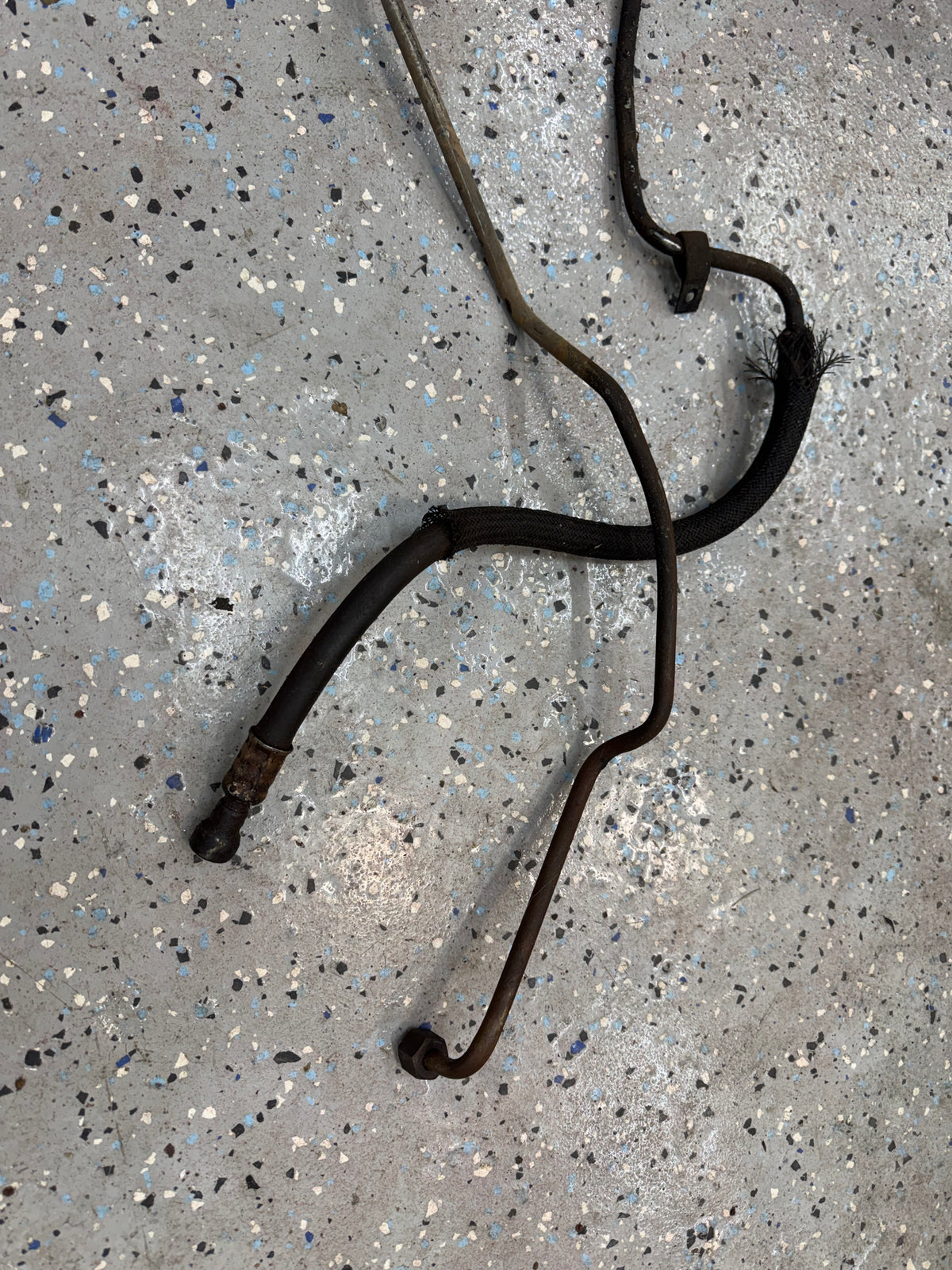

- The Feed Line (front of the tran) is one solid crimped metal to rubber hose that runs the the lower Radiator Fitting to a push on 3/8 quick connect. This will be all OEM and not cut!

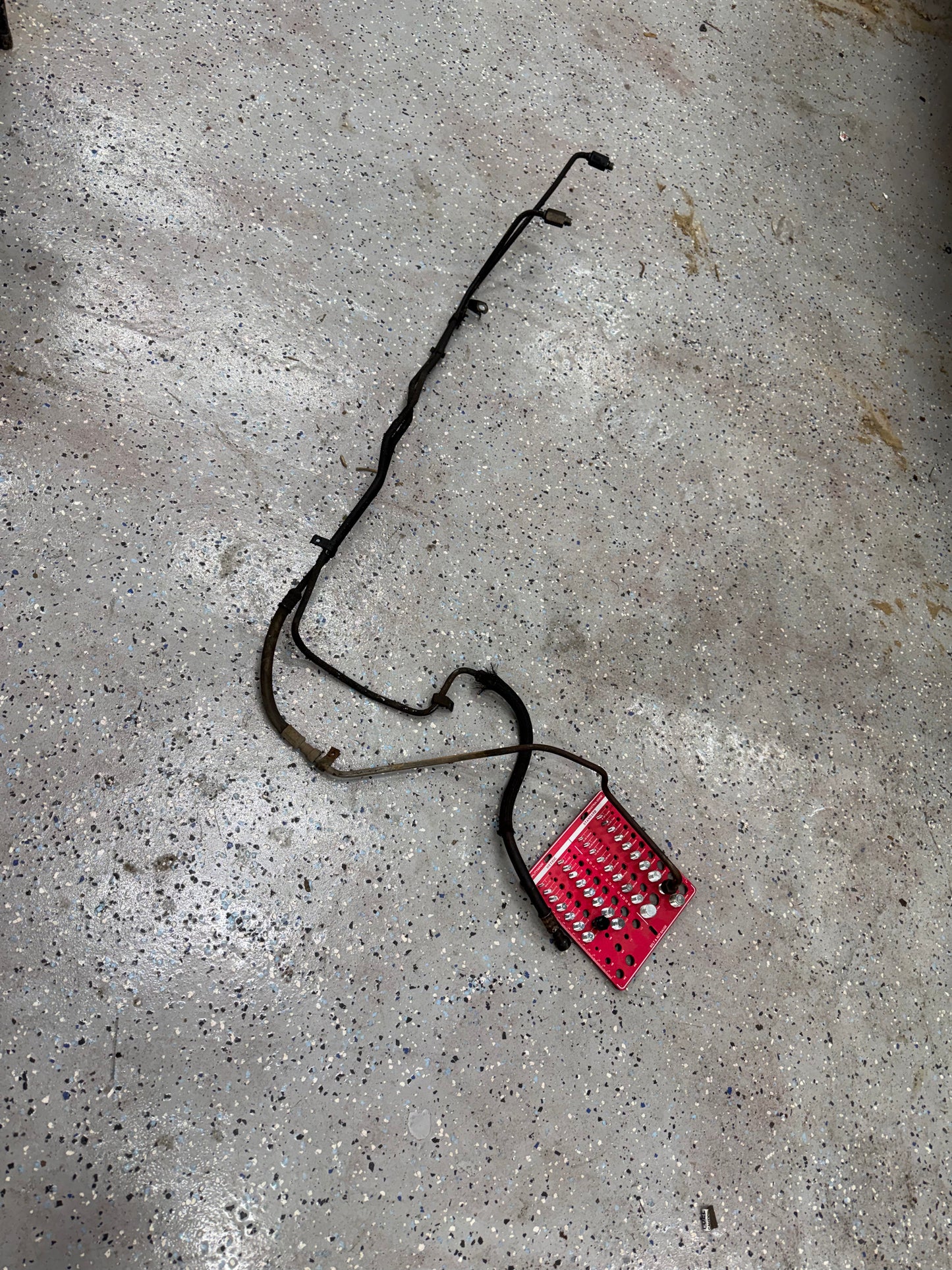

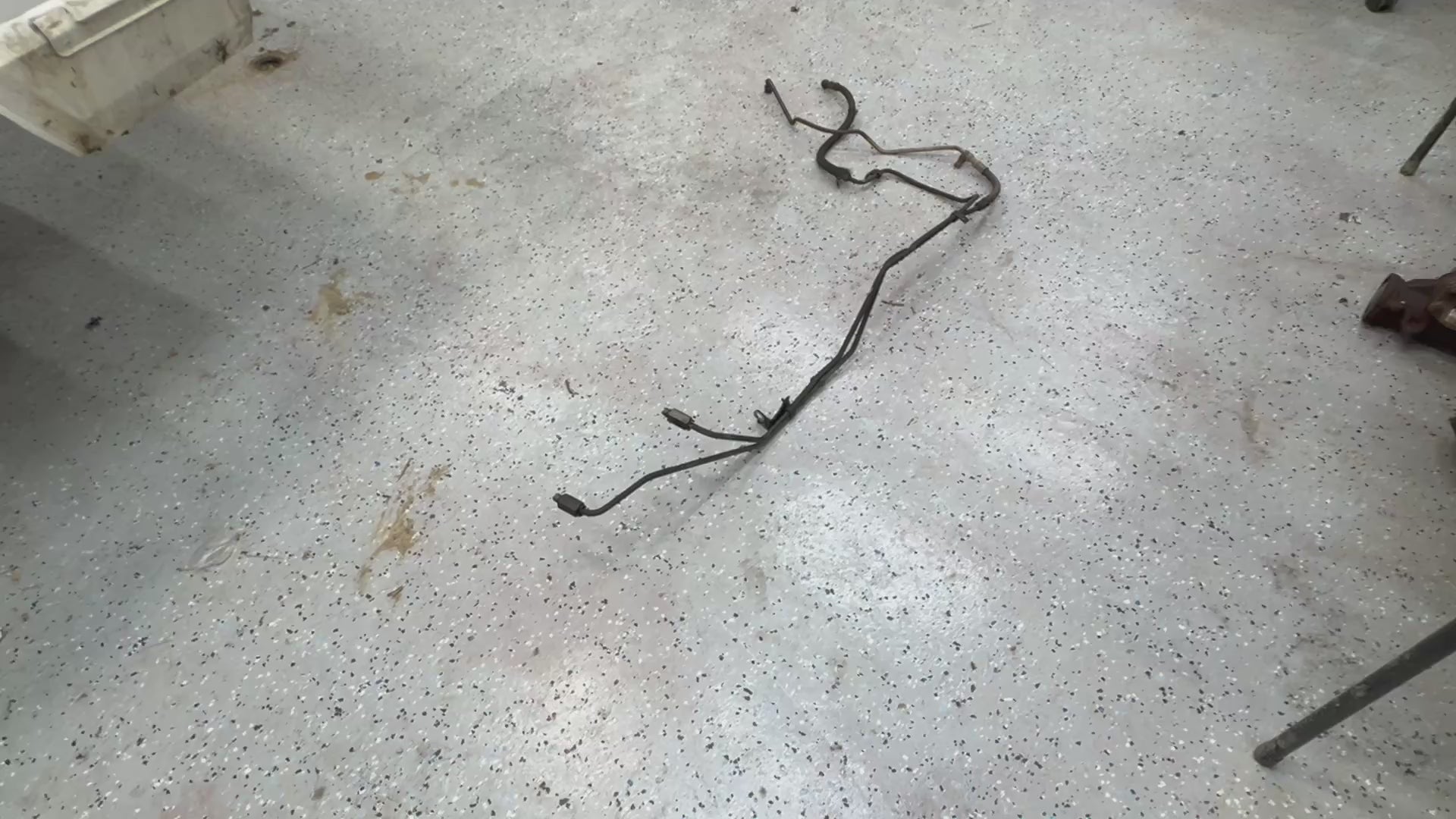

- The Return Line (Rear of the Tran) Will be the Standard Cooling Lines - They have a quick connect to add and extra cooler. I will have those listed separate! These will have the extension hard line that runs from the quick connect around the front of the engine around the balancer that runs to the upper radiator threads

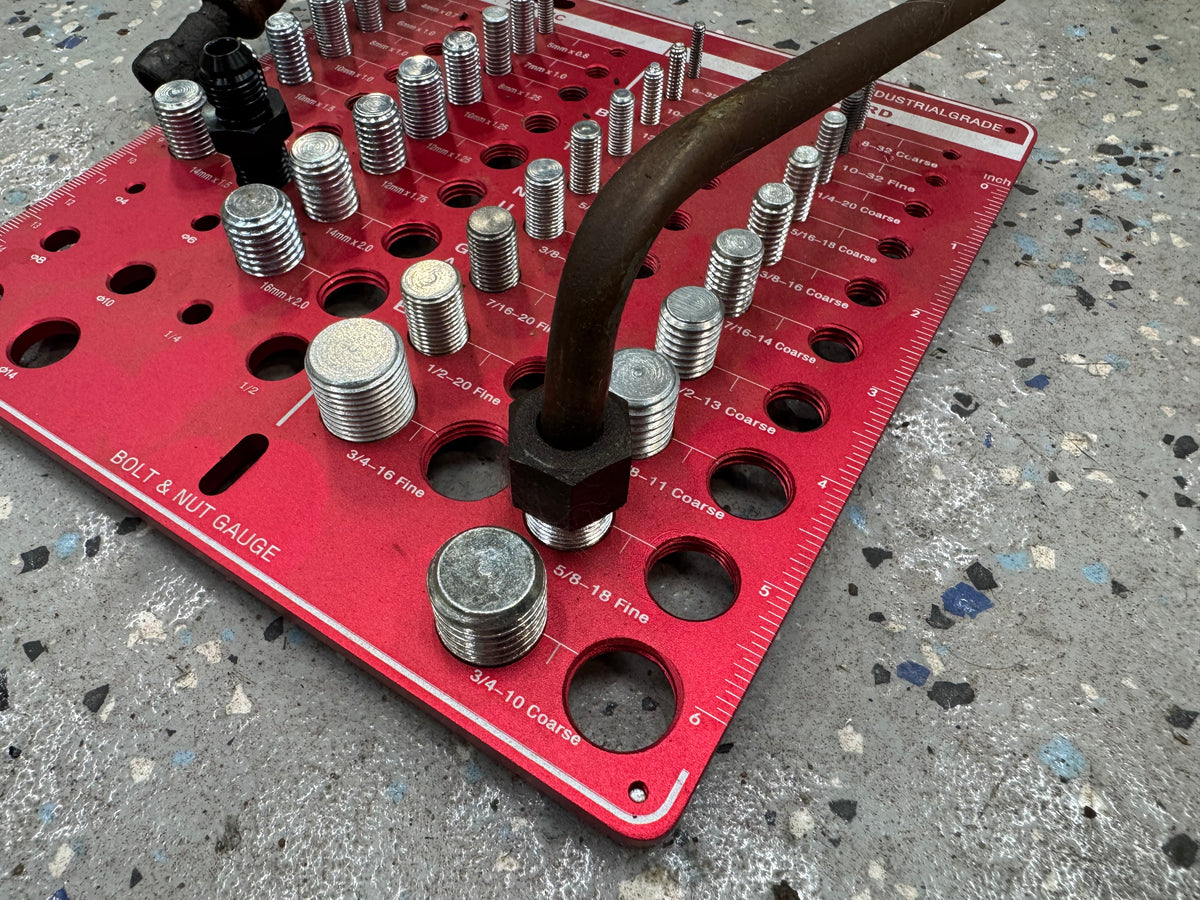

- 3/4 Nut Size - 5/8 - 16 Fine Thread - Inverted Flare Fittings

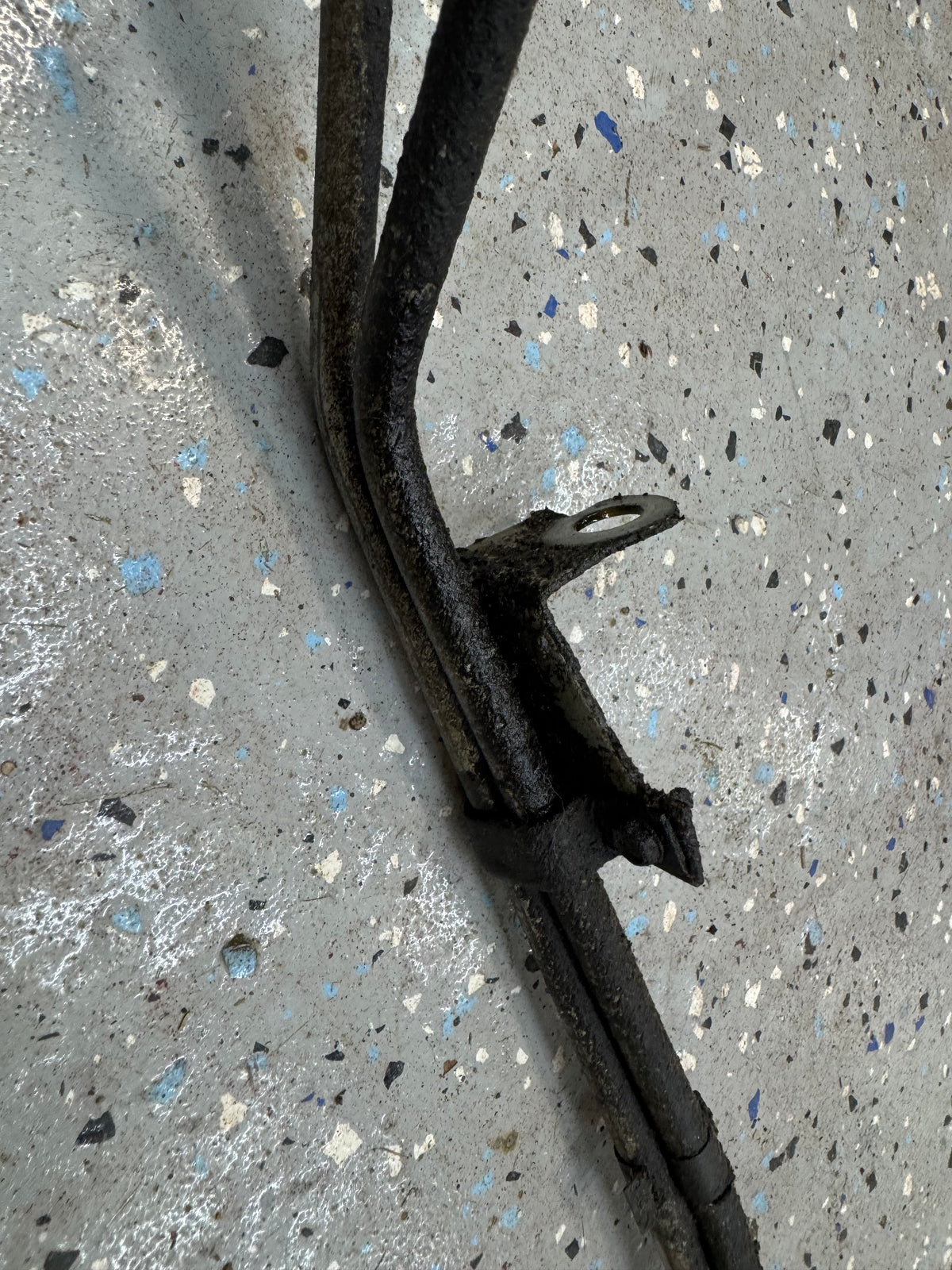

 - These should have all of the needed hangers & come off running Jeeps usually so no leaks or flaws.

 - I Did NOT See these Listed Online Used - Just New Cheap China Parts!

 - Need the Radiator Adapter Fittings? - CLICK HERE
