Power Steering Pump Spacer/Bracket for Jeep 5.2/5.9 V8s
Power Steering Pump Spacer/Bracket for Jeep 5.2/5.9 V8s
Couldn't load pickup availability

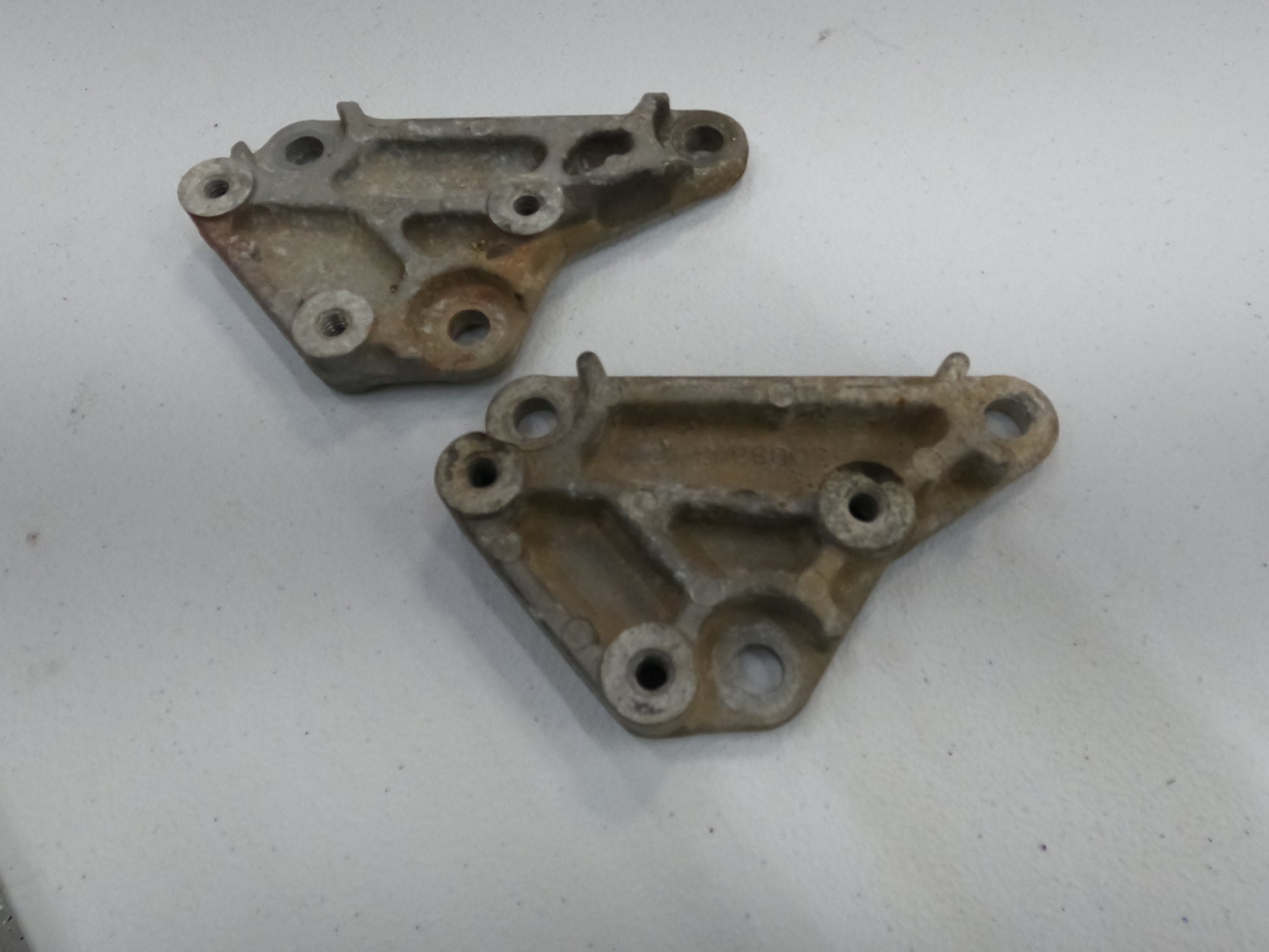

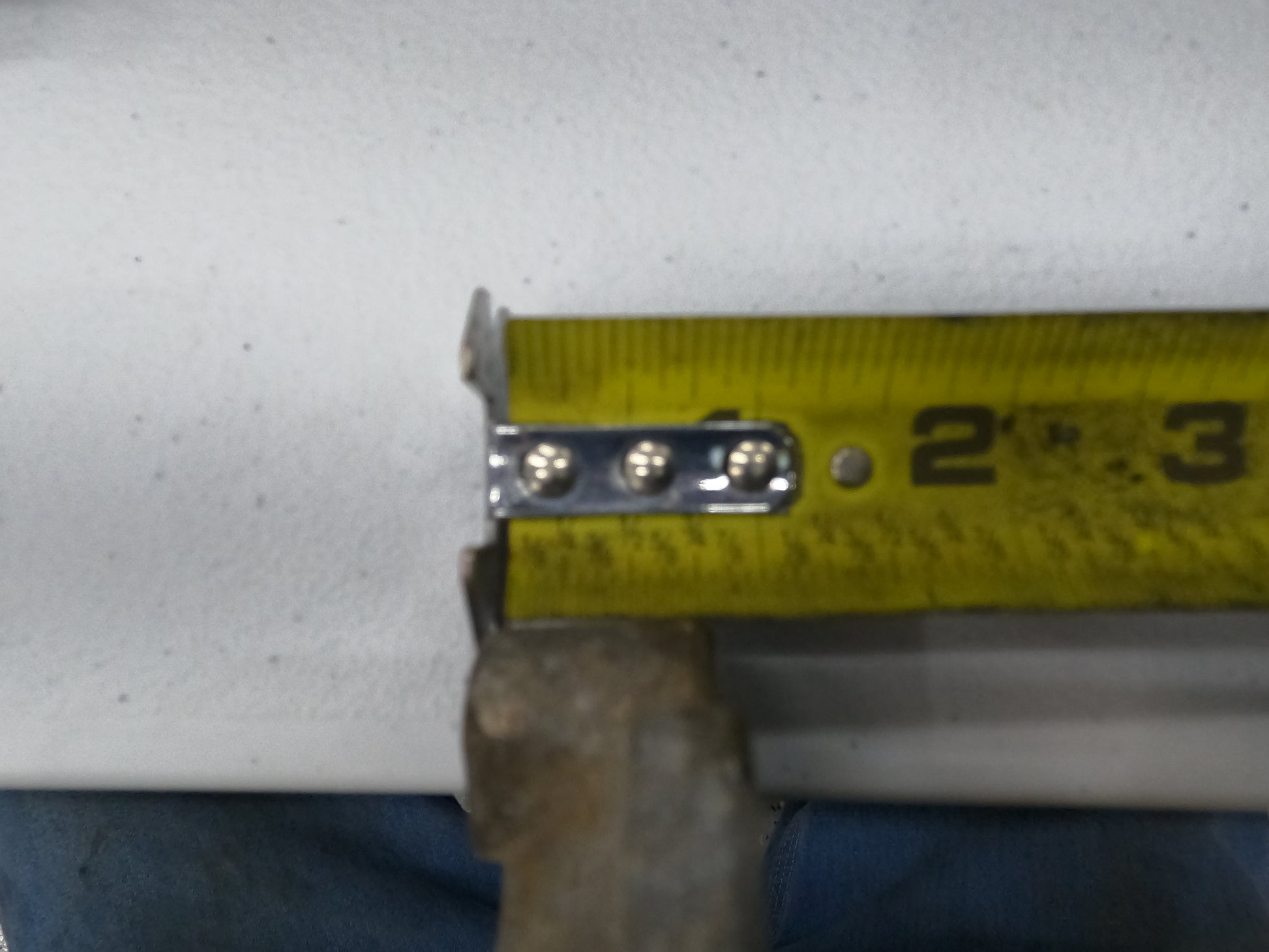

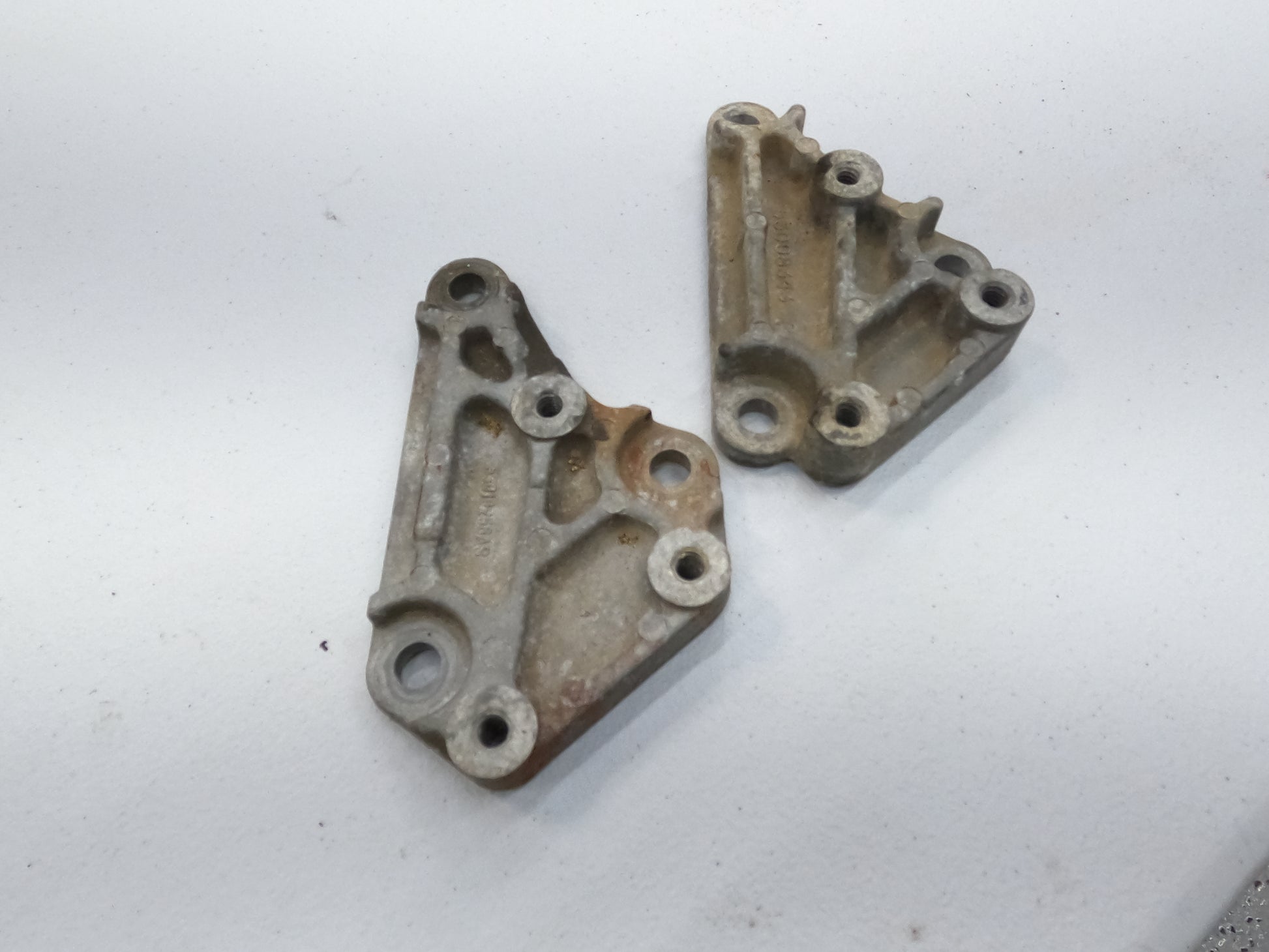

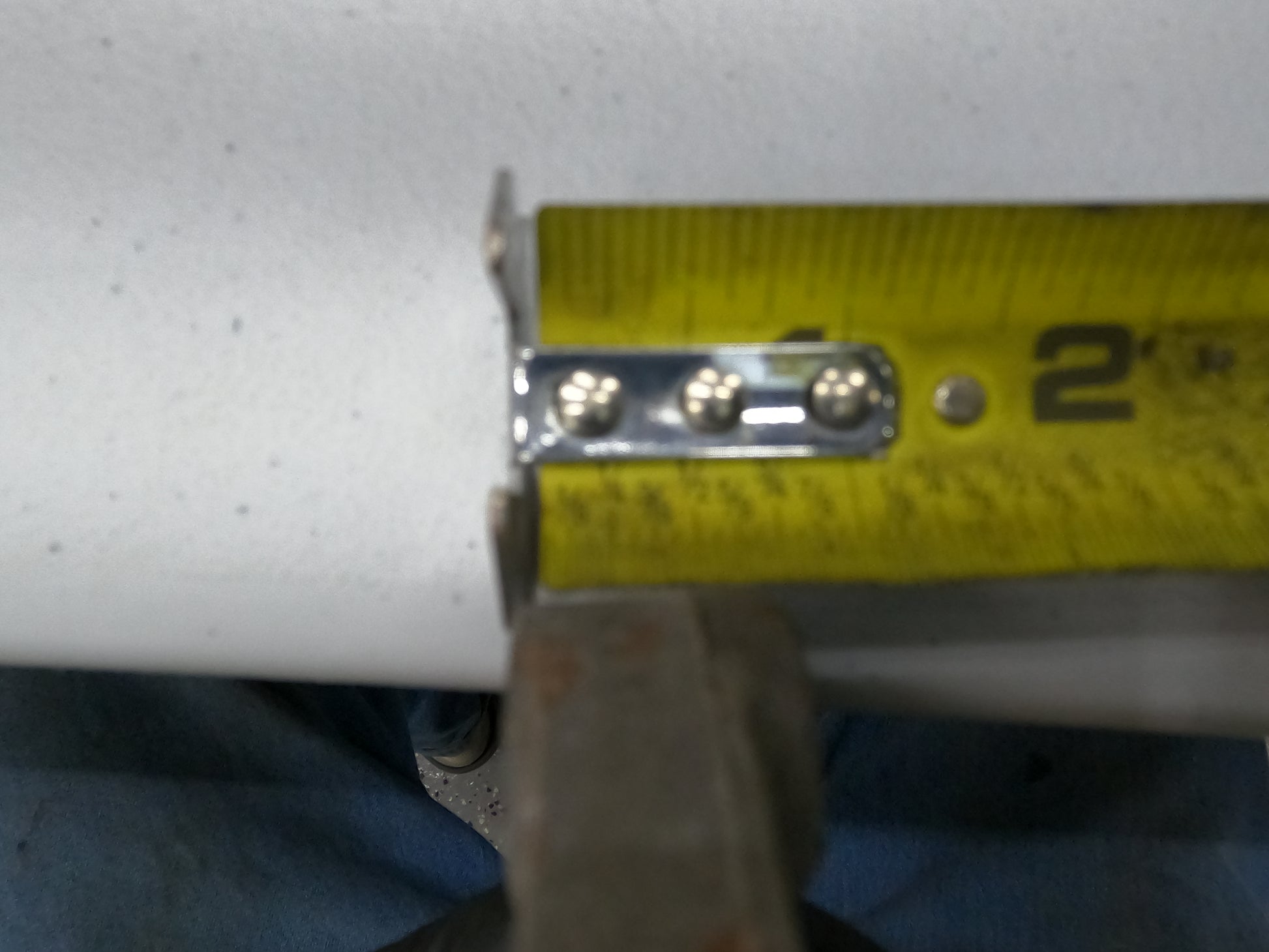

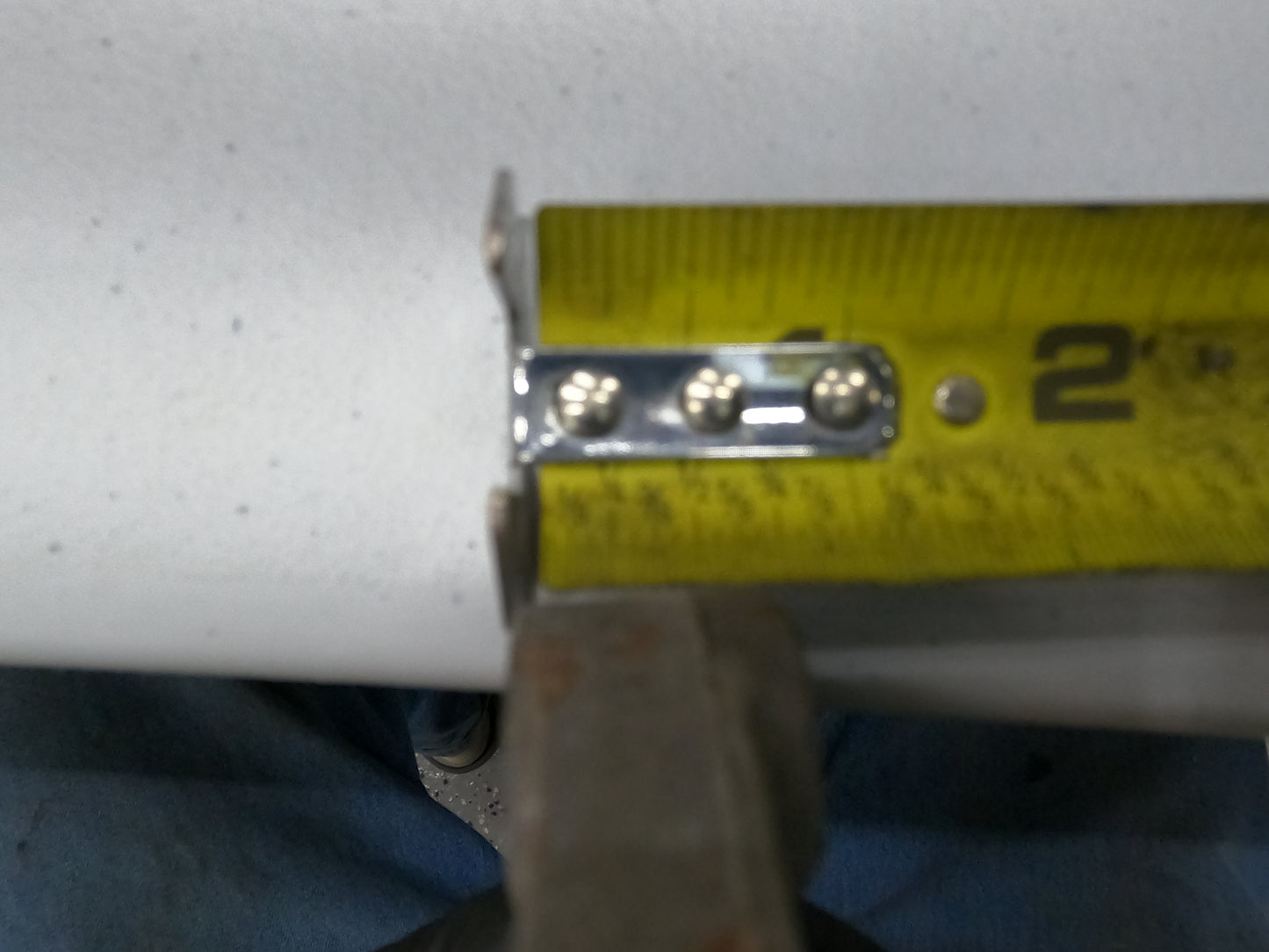

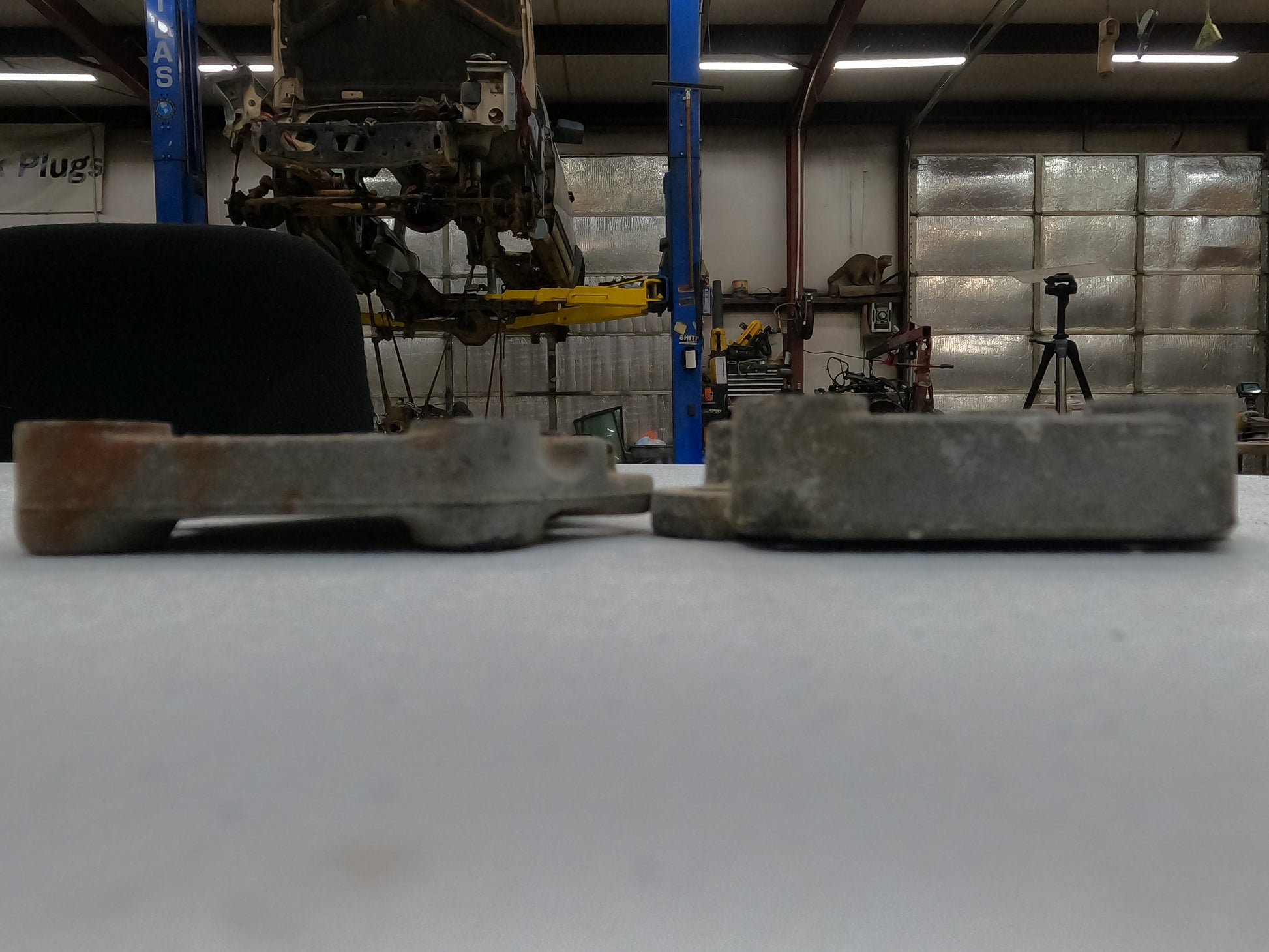

These are the spacers for the power steering pump for the 1993-1998 Jeep Grand Cherokees with the 5.2 or 5.9 Liter V8. These are very common to crack which actually causes a belt squeak which is nearly impossible to diagnose. Notice the thickness between the two, one is slightly thicker than the other. The 1993-1995 SHOULD have metal/steel Power Steering pump pulley which uses the thicker mounting bracket. The 1996-1998 Uses a Plastic/composite pulley on the Power Steering pump which uses the thinner bracket/spacer.
Regardless of years, the spacer you would need is based off of the material of the pulley you have. An engine swap could have used one of the other pulley, or the metal pulley is an upgrade on account of the plastic pulleys exploding or breaking.
